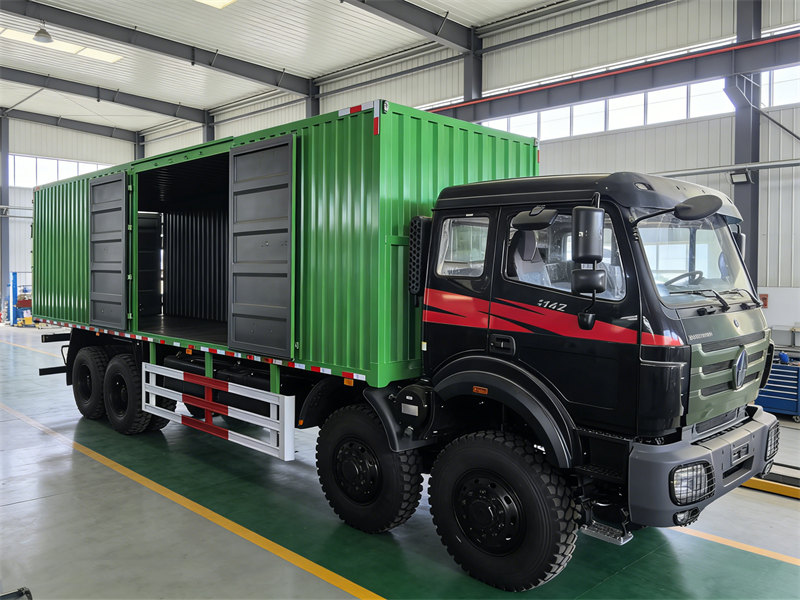

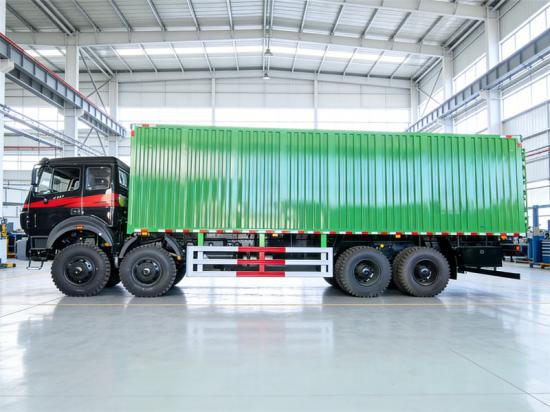

Camión de carga todoterreno Congo Bukavu Beiben 8x8
La furgoneta Beiben 8×8 con tracción en las cuatro ruedas es un vehículo comercial pesado diseñado específicamente para logística pesada y especializada. Incorpora un motor Weichai de 420 CV y una transmisión de 12 velocidades. Combinado con un sistema de tracción 8×8 y un eje de doble reducción con tecnología Benz, ofrece una excepcional capacidad de carga y un rendimiento todoterreno excepcional. El vehículo está equipado con una robusta caja de carga de hierro de aproximadamente 61 metros cúbicos y dos tanques de combustible para una mayor autonomía, lo que garantiza que satisfaga las demandas de operaciones de carga pesada, gran capacidad y alta fiabilidad.
Precio de mercado:
$72500Capacidad de trabajo:
40 tonsTipo de cabina:
Beiben NG80B cabinDimensión (mm):
12100×2700×3470Sistema de propulsión:
8×8Distancia entre ejes (mm):
1500+4150+1450potencia del motor:
420HP/WP12.420E32Caja de cambios:
12JS200TObservación:
6×6, 8×4, RHD drive is optional
El camión furgón Beiben 8×8 con tracción en las cuatro ruedas es un vehículo comercial de alto rendimiento diseñado para el transporte pesado y las condiciones viales más exigentes. Está propulsado por un motor diésel WP12.420E32 que genera 420 caballos de potencia y un par máximo de 1750 N·m. Combinado con una transmisión manual de 12 velocidades y un sistema de tracción integral permanente, garantiza una capacidad todoterreno excepcional y un excelente rendimiento de carga. El chasis utiliza un bastidor de sección transversal variable con suspensión de ballestas tanto delantera como trasera. Combinado con un eje motriz de doble reducción con una relación de transmisión de 5.263, el vehículo ofrece un importante potencial de carga nominal y una excelente estabilidad.
This
Beiben 8WD cargo van

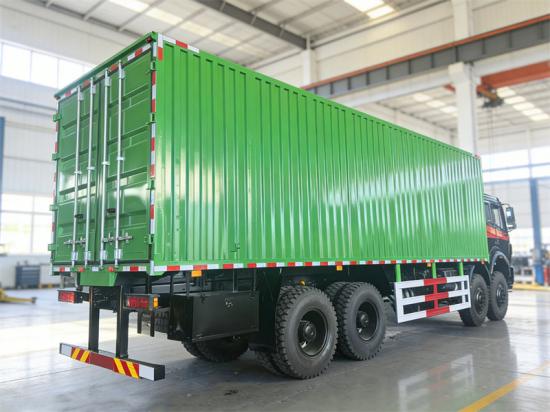

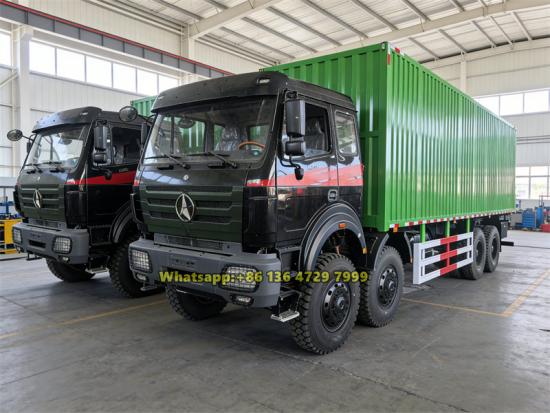

is equipped with a fully enclosed cargo box measuring 9.4 meters in length, providing approximately 61 cubic meters of volume, making it suitable for transporting large-volume goods. Dual 400-liter iron fuel tanks enable an extended operating range, while a maximum speed of 90 km/h balances efficiency and safety. The cab is an NG80B long-roof, double-bunk version, featuring an air-suspension seat and a digital instrument panel to enhance comfort during long-haul drives. Whether in mountainous areas, construction sites, or long-distance trunk routes, this rugged and reliable all-wheel-drive van is capable of handling a wide range of heavy-duty transportation tasks.
CEEC factory
is authorized supplier on beiben 8x8 off-road trucks,
guarantee all beiben 8x8 drive trucks Brand-New and High-Quality.
» Ⅰ. Product Defination and Introduction:
Manufacturer: CEEC TRUCKS

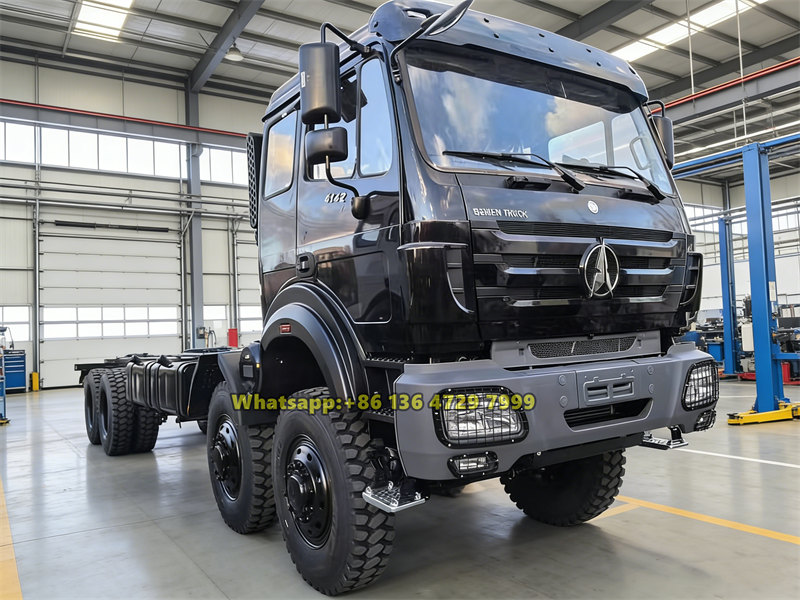

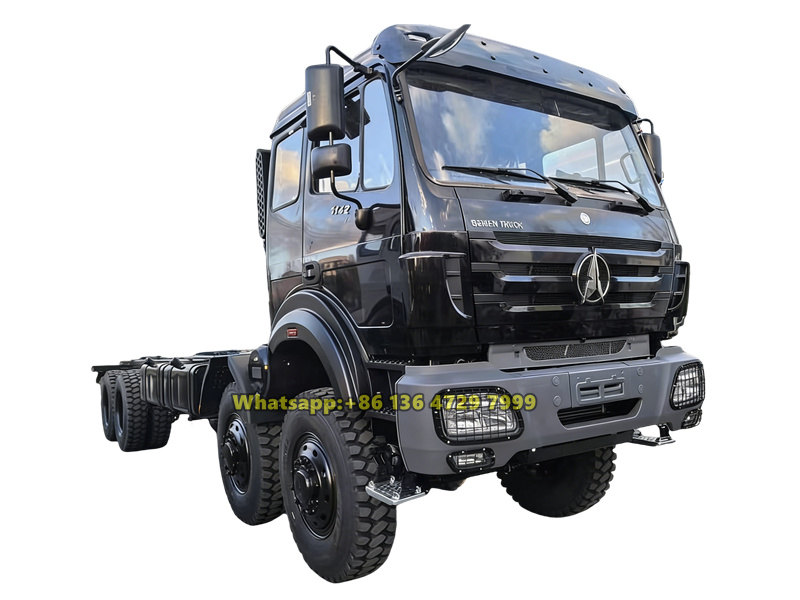

▶ Chassis: Beiben heavy-duty chassis, 8×8 all-wheel-drive
▶ Engine: Weichai WP12.430E32 diesel engine, 6-cylinder, Euro 3
▶ Transmission: FAST 12JS200T, 12-speed forwards and 2-speed reverse

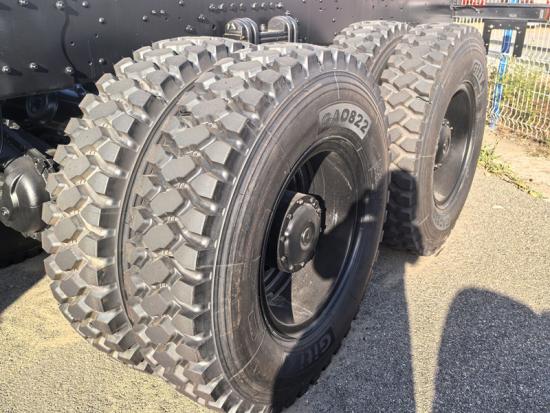

▶ Tires: 12.00R24
▶ Van body: 9400x2500x2600mm
» Ⅱ. Product Specifications:
|
Beiben 8 × 8 AWD Box Van Truck |
||
|
Wheelbase(mm) |
1500+4150+1450 |
|
|
L*W*H |
12100X2700X3470 |
|
|
Curb weight(kg) |
14800 |
|
|
Front overhang/rear overhang (mm) |
1435/2855 |
|
|
Front wheel track (mm) |
1995/1995 |
|
|
Rear wheel track (mm) |
1800/1800 |
|
|
Approach angle/Departure angle |
33/20 |
|
|
Max Speed:(Km/h) |
90 |
|
|
Engine |
Model |
WP12.420E32 |
|
Type |
water-cooled, four strokes, 6 cylinders straight in line, turbocharged |
|
|
Fuel type |
Diesel |
|
|
Min rate of consuming fuel(g/(kw.h)) |
196g/kw.h |
|
|
Rated Power / rotating(kw/(r/min) |
319Kw(420HP)/2200rpm |
|
|
Emission |
EURO 3 |
|
|
Maximum Torque / rotating speed (n.m/(r/min) |
1750Nm/1500-1800rpm |
|
|
Displacement(ml) |
11.596 |
|
|
Fuel tanker capacity(L) |
400L+400L Iron |
|
|
Transfer case |
LF200 |
|
|
Clutch |
Model |
#430, Single dry frictional disc, Hydraulic boosting |
|
Gearbox |
Model |
12JS200T mechanical type, mechanical type, Based on Fuller Eaton technology, 12 Forward speed gear. |
|
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
|
Assistant brake |
Engine exhaust brake |
|
|
Park brake |
Potential springs pressing on middle and rear wheels |
|
|
Steering system |
Model |
8098 whole circulation in ball type, hydraulic boosting |
|
Suspension System |
Front Suspension |
Non-free standing leaf spring, telescopic shock absorber with stabilizer bar suspension,12/12 pcs springs. |
|
Rear Suspension |
Non-free standing stabilization spring, stabilization suspension,13 pcs springs |
|
|
Frame |
Fish belly shape, variable width, variable sections, Based on Germany Benz Technology |
|
|
Cross section dimension of frame(mm) |
317×70×8.5+7+8mm |
|
|
Double Front axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, 7500+7500kg |
|
|
Middle and Rear axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, 13000kg+13000kg double reduction driving axle, speed ratio5.263 |
|
|
Tire |
12.00R24 radial tire |
|
|
Electrical system |
Battery |
2X12V/135Ah |
|
Generator |
28V-70A |
|
|
Starter |
5.58Kw/24V |
|
|
Cab |
NG80B
|
|
|
Interior trimming:
|
||
|
Exterior trimming:
|
||
|
Other specifications |
Two layer air filter |
|
|

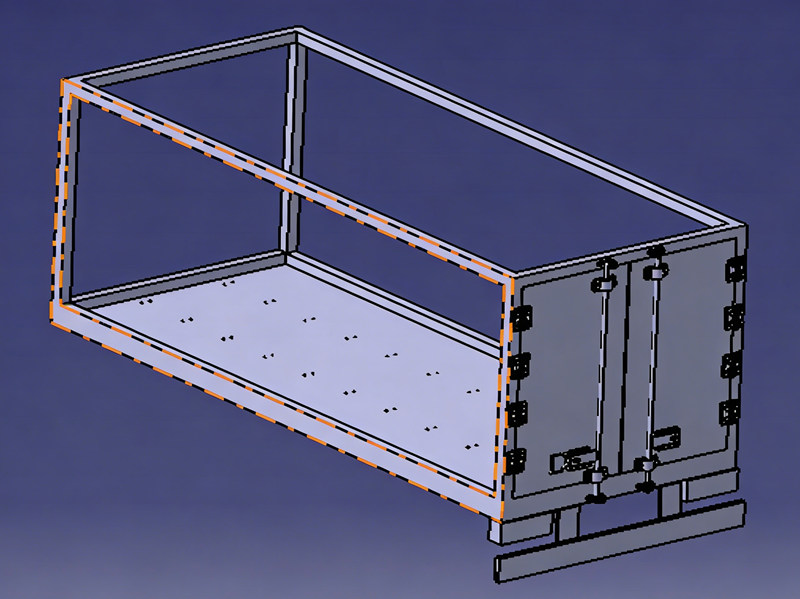

Upper body specifications |
||
|
Van body dimensions |
9400x2500x2600mm |
|
|
Van body material |
Corrugated iron sheet |
|
|
Thickness |
3mm |
|
» Ⅲ. Product Advantages:
Beiben NG80B cabin
Beiben NG80B long cabin
2 seats with one sleeper bed
Full steel skeleton structure
Can be tipped forwardly

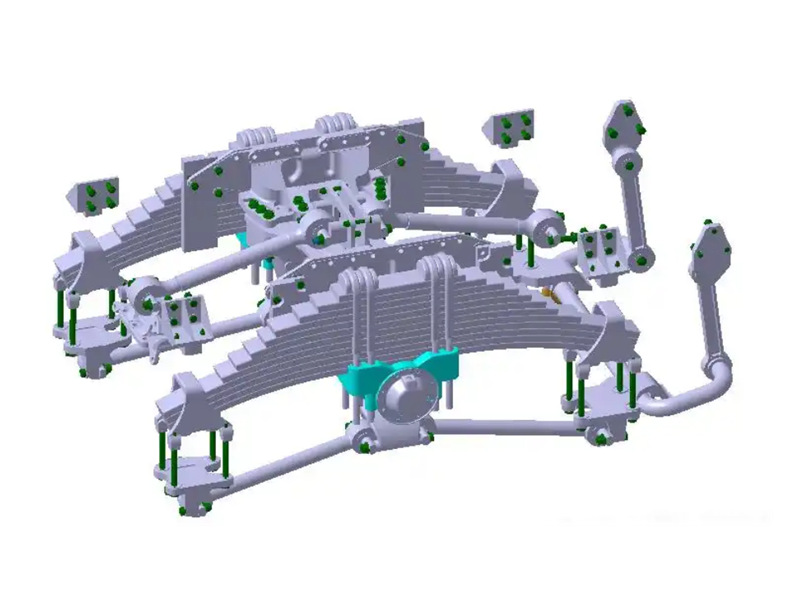

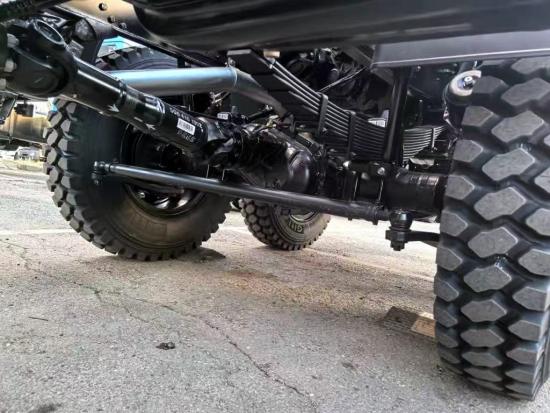

Reinforced suspension
Front leaf springs: 12/12 pcs
Rear leaf springs: 13 pcs
Number of U-shape bolts: 4

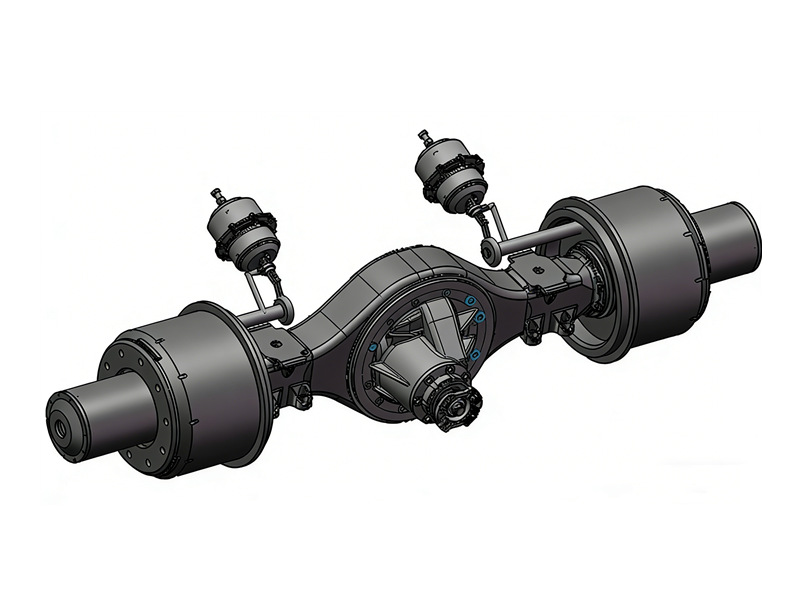

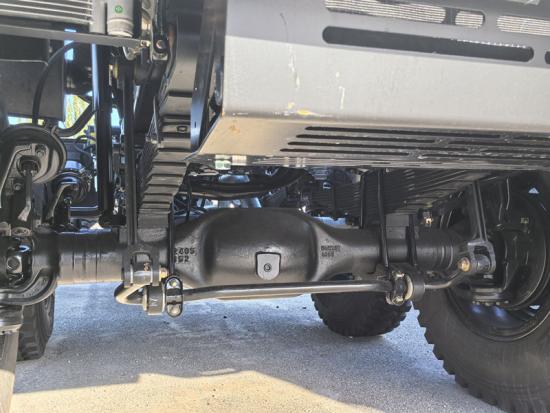

Strong axles
Front axles: driving axle, 7500kg+7500kg
Rear axles: driving axle, 13000kg+13000kg

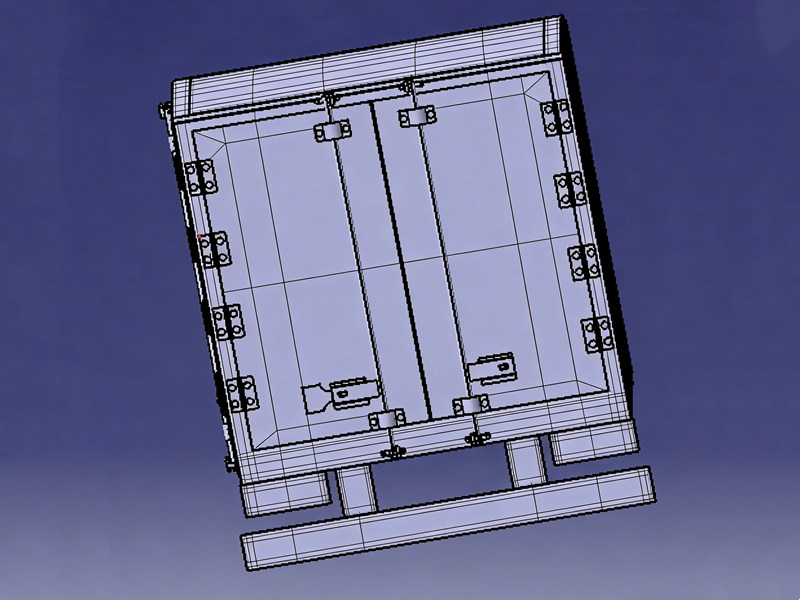

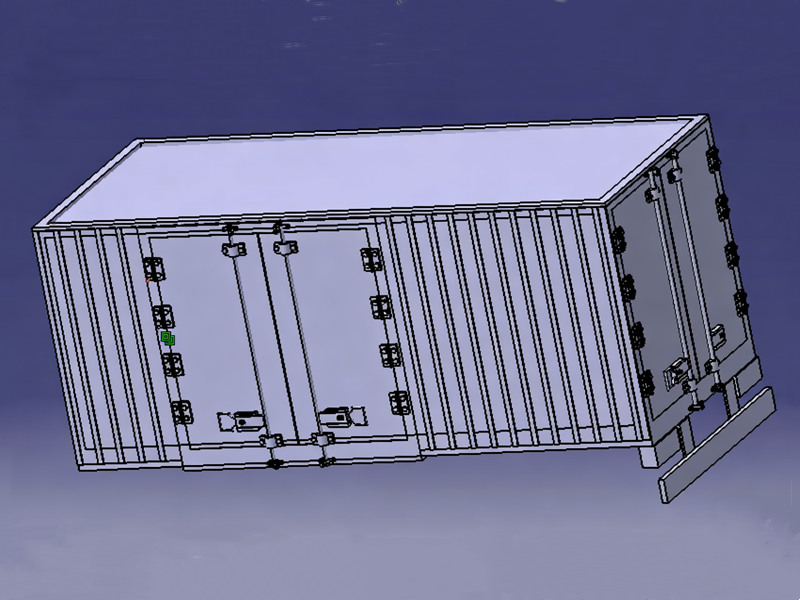

» Ⅳ. Product Drawing:

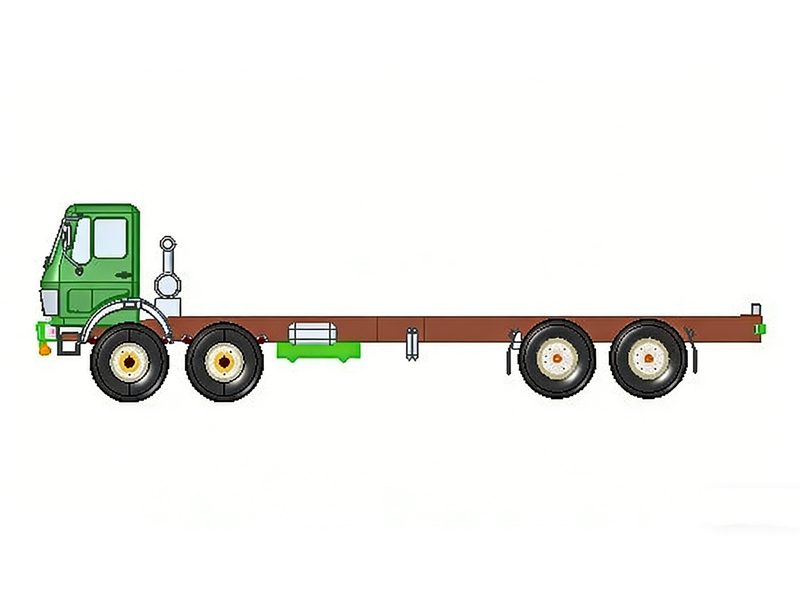

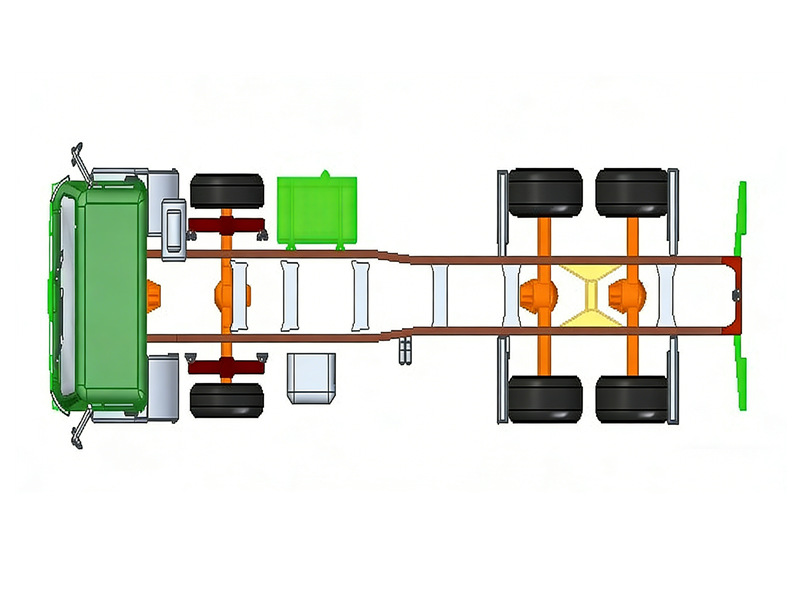

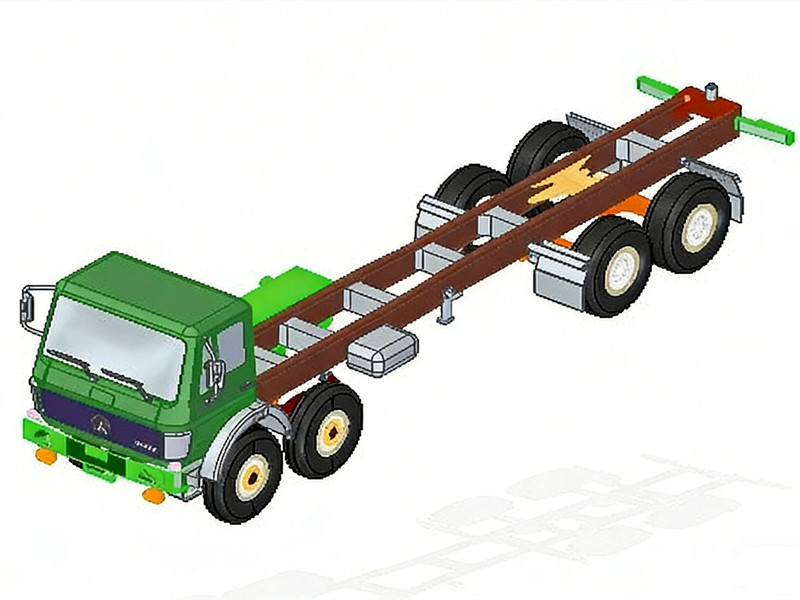

Chassis drawing
