El Weichai WP12.420E32 es un motor diésel Weichai Power WP12 de seis cilindros en línea, cuatro tiempos, refrigerado por agua, turboalimentado, con intercooler, con una cilindrada aproximada de 11,596 L, una potencia máxima de 420 CV (aproximadamente 309 kW) y un par máximo aproximado de 1750 N·m. Presenta una estructura compacta y duradera, un bajo consumo de combustible y se utiliza ampliamente en el sector del transporte de ingeniería, como camiones y tractores de servicio pesado.
Dimensión (mm):
1650×820×1100mmpotencia del motor:
420HPObservación:
Brand new WP12 series enginesEl Weichai WP12.420E32 engine adopts an electronically controlled high-pressure common rail injection system and a turbocharged intercooled intake. It has a compact structure, good fuel economy, and strong adaptability. It is an inline 6-cylinder, water-cooled, four-stroke turbocharged intercooled diesel engine with a displacement of approximately 11.596 L and a power output of 420 horsepower (approximately 309 kW). It is commonly used in heavy-duty trucks, tractors, and other transport vehicles, and meets the China III/Euro III emission standards.
» Ⅰ. Product Defination and Introduction:
Supplier: CEEC TRUCKS
▶ Engine Model: WP12.420E32
▶ Engine Brand: Weichai
▶ Engien Power: 309KW/420HP
▶ Displacement: 11596 ml
» Ⅱ. Product Specifications:
|
Model NO. |
WP12 .420E32 Engine |
|
Product Name |
Weichai Diesel Engine |
|
Cooling System |
Liquid-cooled |
|
Cylinder Configuration |
Inline 6-cylinder |
|
Emission Standard |
Euro 3 |
|
Engine Displacement |
11.596L |
|
Max output power |
309Kw |
|
Fuel Type |
Diesel |
|
Horsepower |
4 20 hp |
|
Total Displacement |
11.6L |
|
Rated Speed |
2 1 00r/Min |
|
Max torque |
1750N.m |
|
Minimum fuel consumption rate at full load |
185g/kW.h |
|
Exhaust Gas Treatment |
EGR Technology |
|
Intake Method |
Turbocharged Intercooled |
|
Compatible Models |
Beiben, Sinotruk , Shacman |
|
Transport Package |
Export Wooden Box |
|
Specification |
1 650 x820x1100mm |
|
W eight |
1050kg |
|
Trademark |
Weichai |

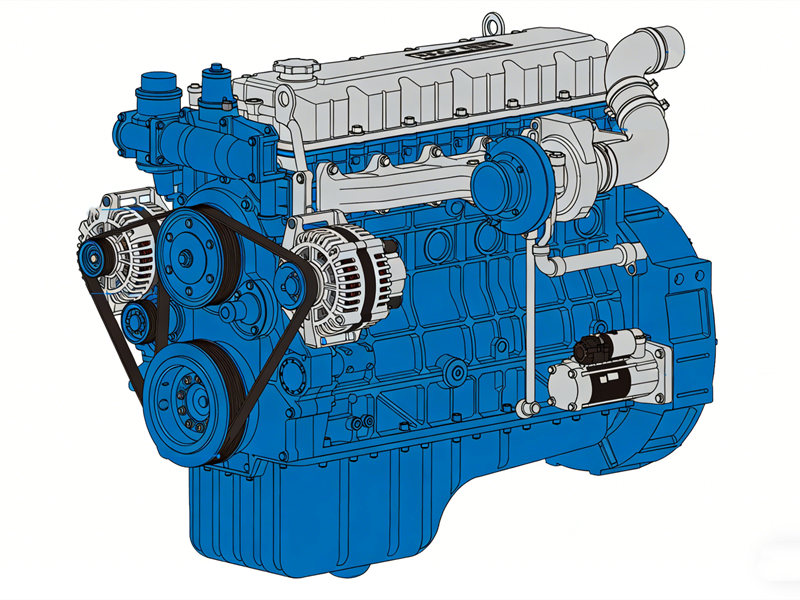

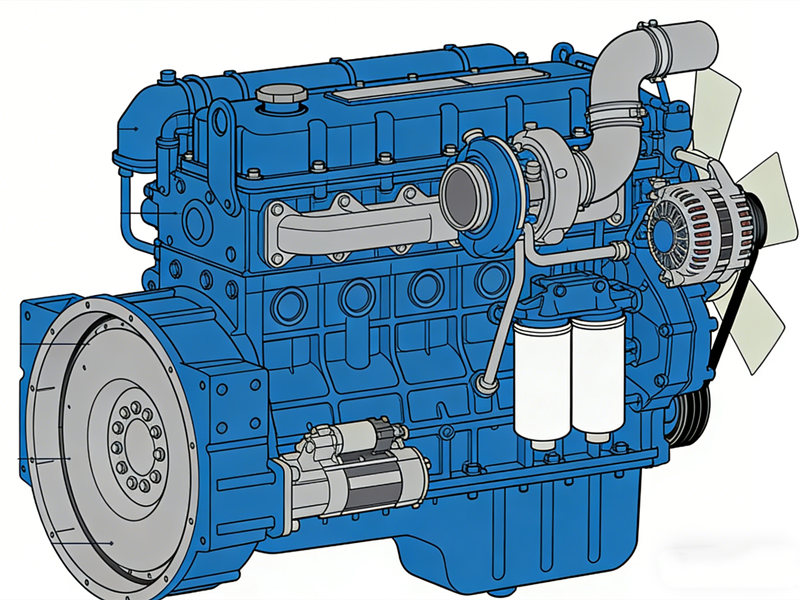

» Ⅲ. Schematic Diagram of WP12.420E32 Engine: :
|
|

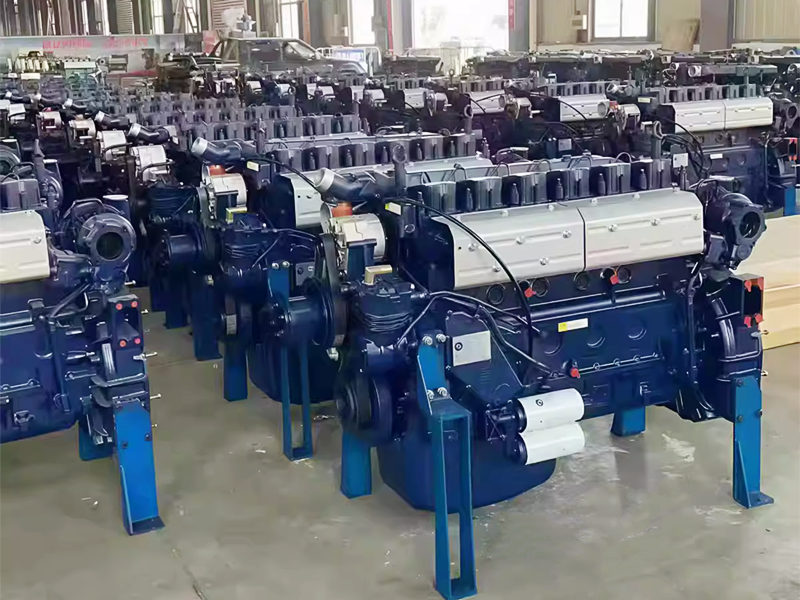

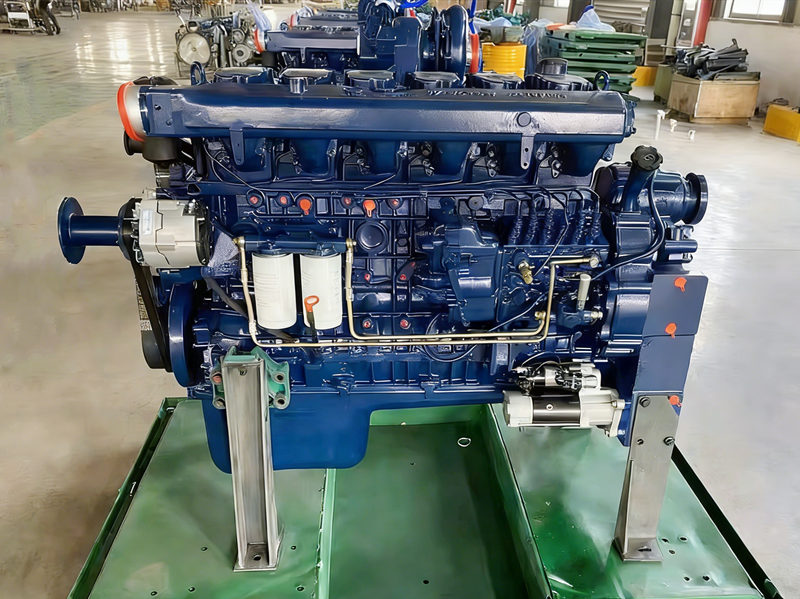

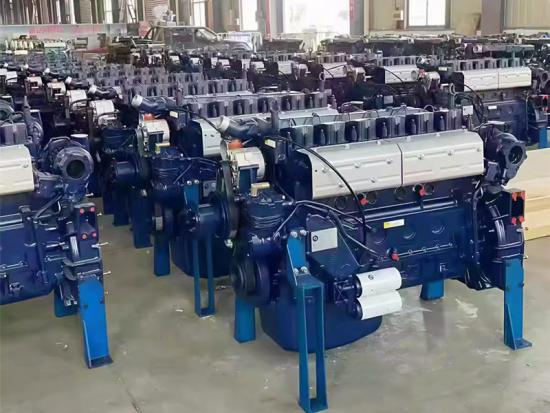

» Ⅳ. Product Details:
|
|
|
|
