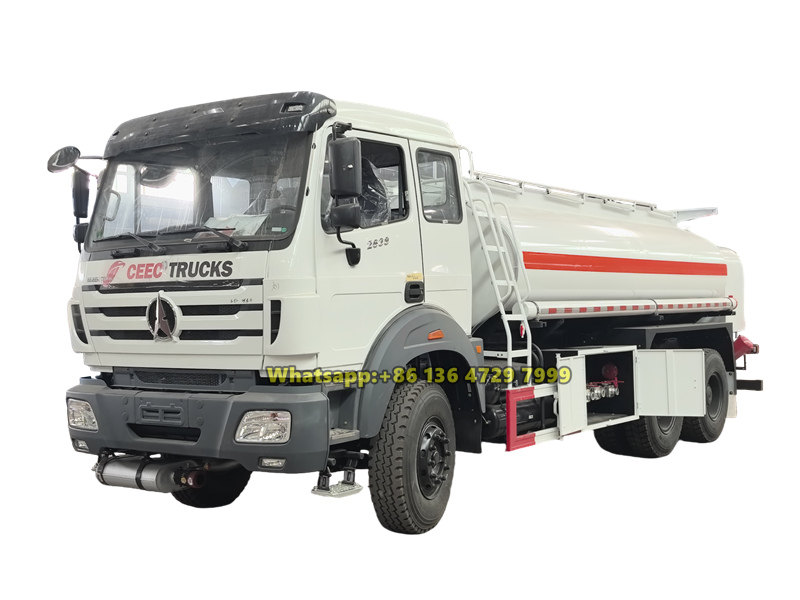

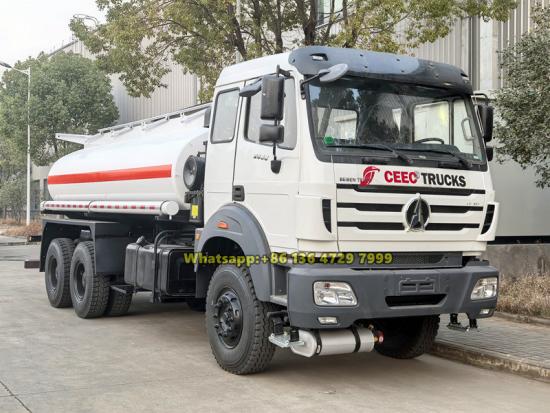

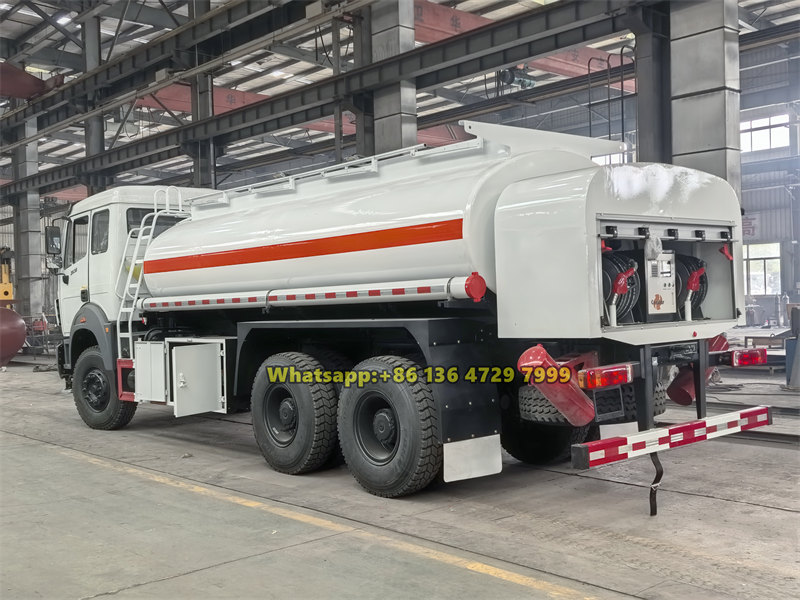

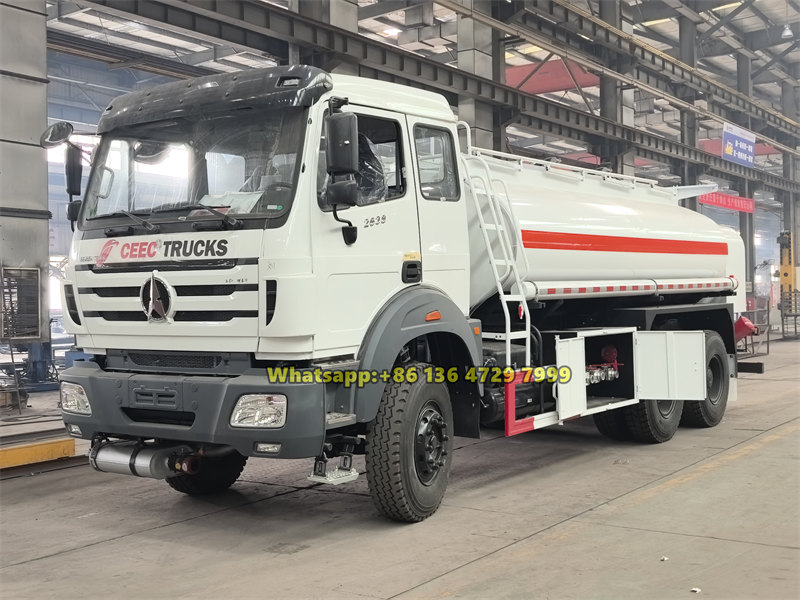

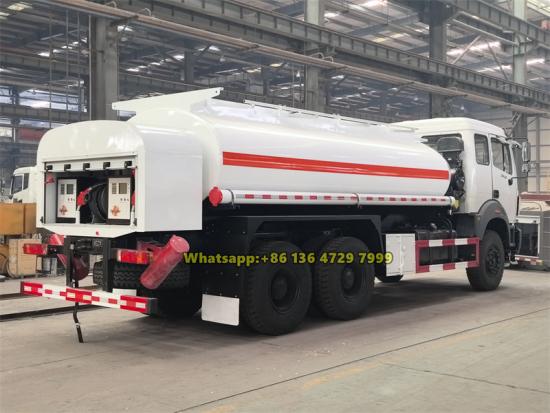

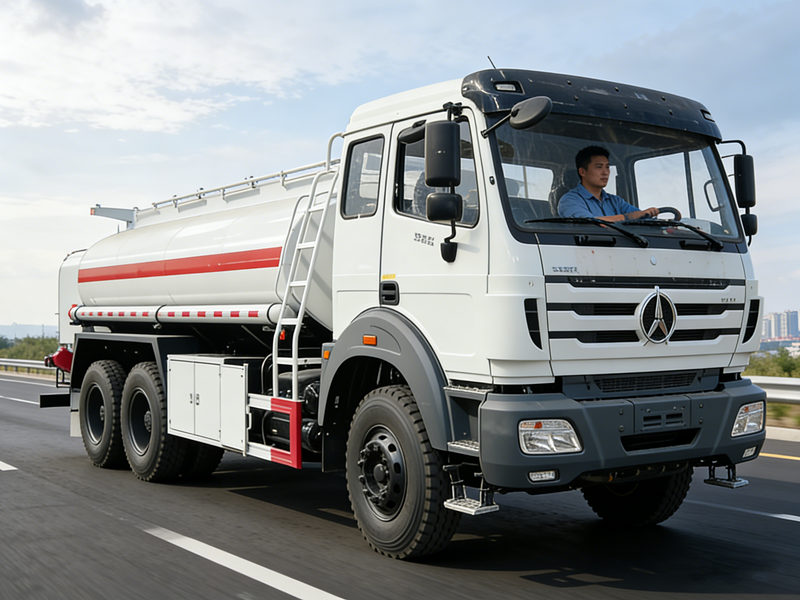

Camión dispensador de combustible móvil Beiben 12000L

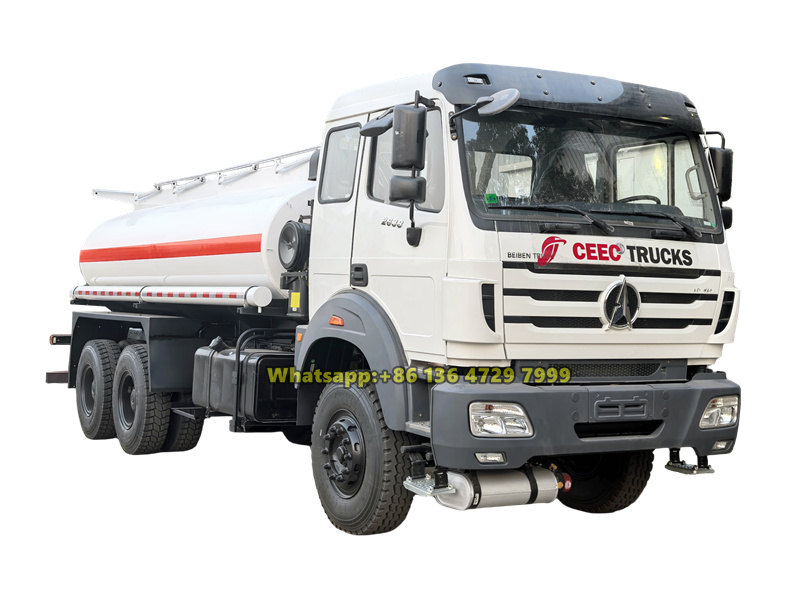

El camión de repostaje Beiben de 12.000 litros es un vehículo pesado de transporte y distribución de combustible, construido sobre un chasis Beiben 6×4. Su configuración básica incluye un motor Weichai de 380 caballos de fuerza y una transmisión manual de 12 velocidades, junto con un tanque de combustible de acero al carbono de doble compartimento y 12 metros cúbicos. Una característica destacada del vehículo es la integración de dos surtidores de combustible CS20D con control digital, lo que permite operaciones de repostaje precisas y eficientes con un caudal de hasta 80 litros por minuto, combinando un transporte confiable con capacidades de distribución rápida in situ.
precio:
$54000Capacidad de trabajo:
12000 litersTipo de cabina:
NG80B long cabin, with sleeperDimensión (mm):
8450×2550×3200Sistema de propulsión:
6×4Distancia entre ejes (mm):
4450+1450potencia del motor:
380HP/WP10.380E32Caja de cambios:
12JS160TObservación:
2 compartments, 2 fuel dispensers, stainless steel, aluminum alloy tanker is optional
El camión de repostaje Beiben de 12.000 litros es un vehículo profesional para el transporte y suministro de combustible, construido sobre el chasis 6×4 de alta resistencia de Beiben. Está equipado con un motor diésel Weichai WP10.380E32 de 380 caballos de potencia y una transmisión rápida de 12 velocidades. El vehículo está cuidadosamente diseñado para satisfacer las exigencias de un transporte eficiente y tareas operativas. Su tanque central está fabricado en acero al carbono de 5 mm, con una capacidad de 12.000 litros, dividido en dos compartimentos, lo que permite el transporte seguro de diversos combustibles, como gasolina y diésel.
A key advantage of this
Beiben fuel dispenser truck

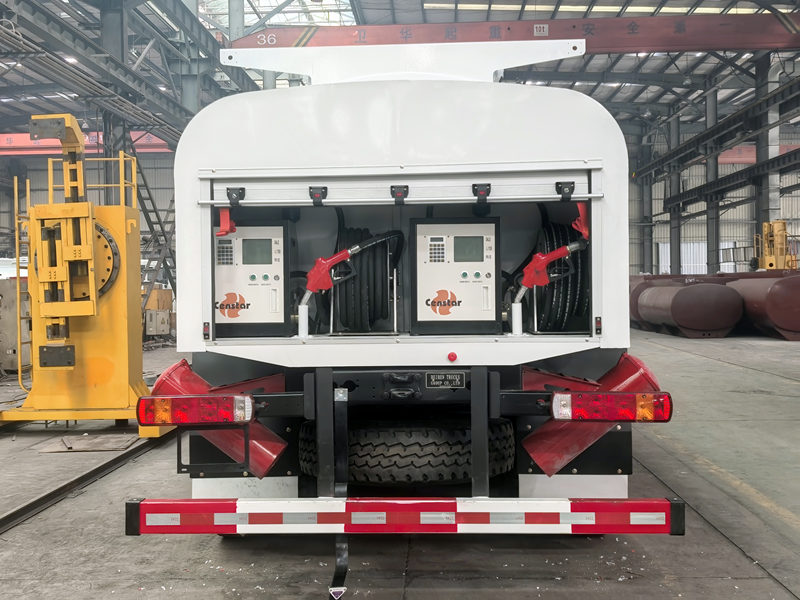

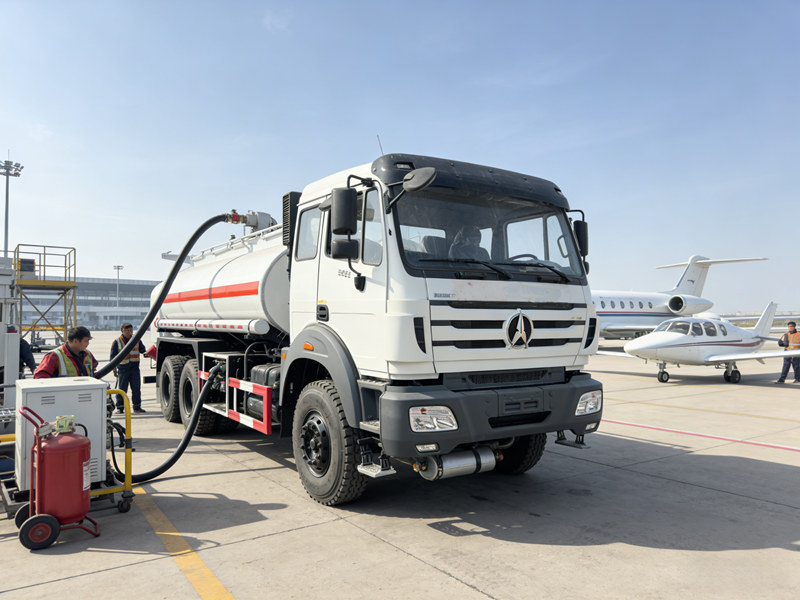

lies in its advanced dispensing system. It features two Censtar CS20D digital-controlled fuel dispensers, enabling synchronized dual-nozzle, accurately metered, and rapid refueling operations, with each dispenser achieving a flow rate of up to 80 liters per minute. Combined with a high-flow fuel pump and a 20-meter retractable refueling hose reel, this oil truck not only performs long-distance transportation but also functions as a mobile refueling station, providing efficient and convenient fuel distribution services in various remote or fixed locations.
CEEC factory
is authorized supplier on beiben tanker trucks,
guarantee all beiben fuel tanker trucks Brand-New and High-Quality.
» Ⅰ. Product Introduction:
Manufacturer: CEEC TRUCKS
▶ Chassis: Beiben 6×4 chassis, NG80B long cabin, Weichai 380HP diesel engine, Fast 12-speed gearbox
▶ Tank body: 120000 liters capacity, 2 compartments, carbon steel with 5mm thickness
▶ Fuel pump: China top brand, 60m3/h flow rate, 970 rpm speed
▶ Fuel dispenser: 2 units, Censtar CS20D digital-controoled dispenser, 80L/min flow rate
▶ Hose reel: 20 meters hose with 1'' diameter
» Ⅱ. Product Specifications:
|
Product nam e |
Beiben fuel tanker truck |
||
|
Main details |
Chassis Brand |
Beiben |
|
|
Drive type |
6×4 , left hand drive |
||
|
Wheelbase |
4450+1450 mm |
||
|
Overall dimensions |
8450x2550x3150 mm |
||
|
Gross vehicle weight |
26000 kg |
||
|
Curb weight |
10800 kg |
||
|
Max. driving speed |
80 km/h |
||
|
Clutch |
Reinforced diaphragm clutch |
||
|
Brake |
Air brakes |
||
|
Steering |
Power steering, hydraulic steering with power assistance |
||
|
Tire |
Quantity |
10 pcs with one spare tire |
|
|
Specifications |
12.00R20 tire |
||
|
Transmission |
Manual type, FAST 12JS160T, 12 Forwards and 2 reverse |
||
|
Cab |
Beiben NG80B long cabin with sleeper, with Air conditioner. |
||
|
Engine |
Brand |
WEICHAI |
|
|
Model |
WP10.380E32 |
||
|
Fuel type |
Diesel |
||
|
Power |
380 HP (280KW) |
||
|
Displacement |
9.726 L |
||
|
Type |
4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
||
|
Emission standard |
Euro 3 |
||
|
Rated speed |
2200 rpm |
||
|
Max. torque |
1600 N.m |
||
|
Fuel tank |
Capacity |
12000 liters |
|
|
Tank material |
Carbon steel |
||
|
Thickness |
5mm |
||
|
Compartment |
2 |
||
|
Transport medium |
Gasoline, Fuel, Diesel |
||
|
Fuel pump |
Brand |
China famous brand |
|
|
Model |
80YHCB-60 |
||
|
Flow |
60 m 3 /h |
||
|
Speed |
970 rpm |
||
|
Pressure |
0.6 Mpa |
||
|
Fuel dispenser |
Brand |
Censtar |
|
|
Model |
CS20D 1110F |
||
|
QTY |
2 |
||
|
Flow rate |
80L/min |
||
|
Power supply |
DC12V/24V |
||
|
Hose reel |
Length: 20 meters; diameter: 1” |
||
» Ⅲ. Product Features:

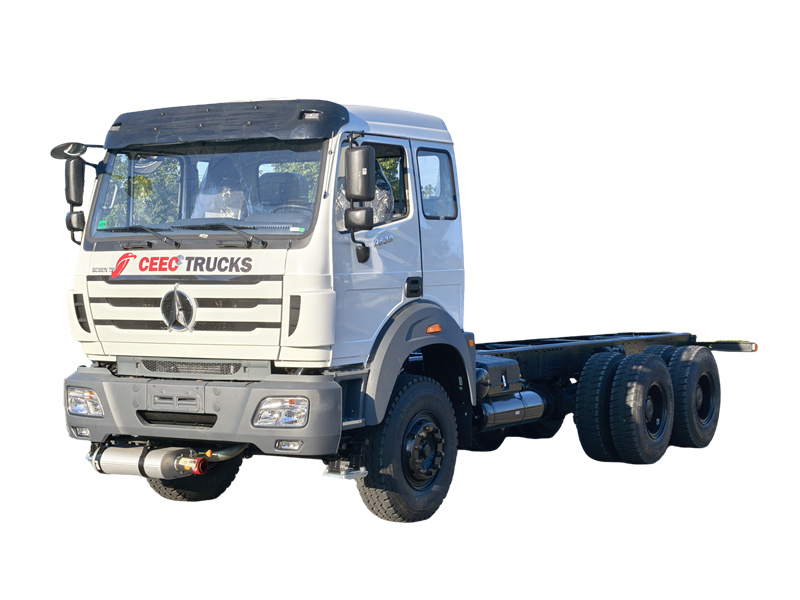

Beiben 2638 chassis
Engine: WP10.380E32, 380HP

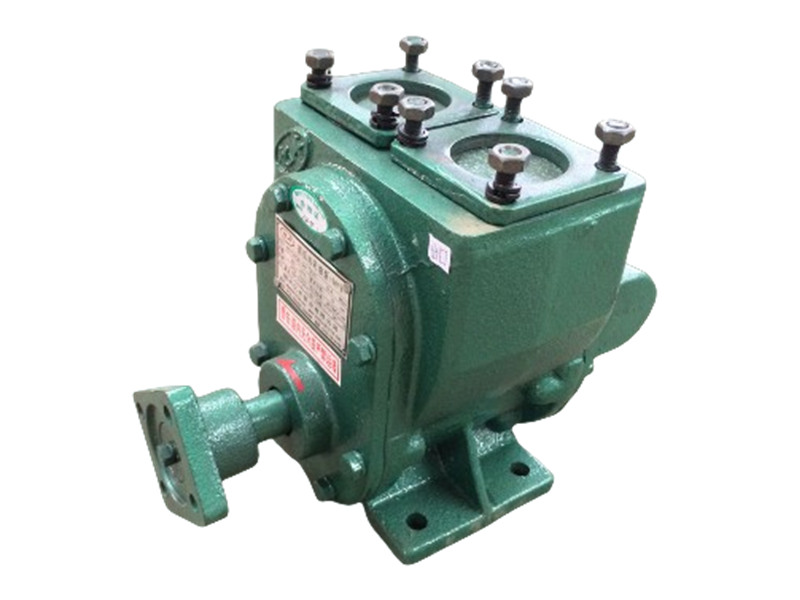

Feul Pump
Model: 80YHCB60

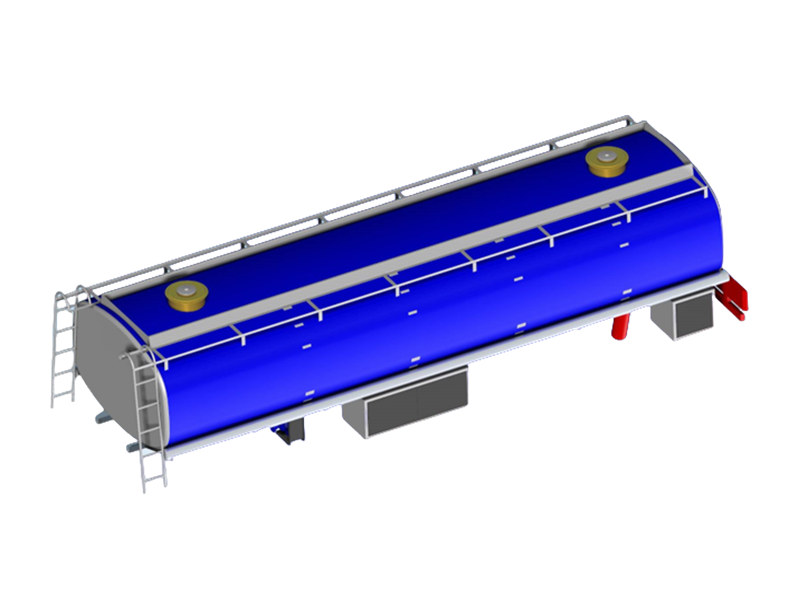

Tank body
Volume: 12000 liters
Material: Carbon steel
Thickness: 5mm
Compartment : 2
Manhole cover
Emergency Opening Pressure:
21 kPa ~ 32 kPa
Maximum Emergency Venting Flow Rate:
7000 m³/h (at 34 kPa)
Material:
Aluminum Alloy
Installation Method:
Clamp-type
Temperature Range:
-20℃ ~ +70℃

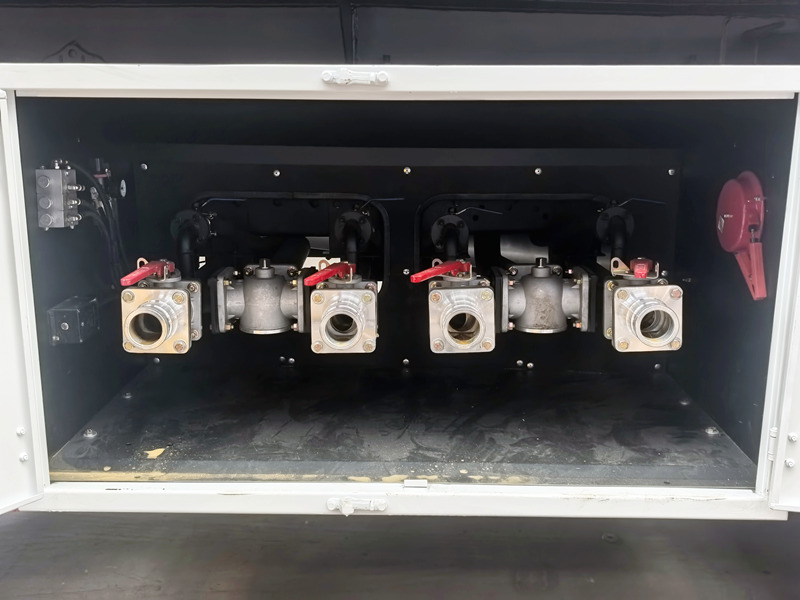

API adaptor valve
Nominal Pressure:
0.6 MPa
Maximum Flow Rate:
2500 L/min
Main Body Material:
Aluminum Alloy
Operation Mode:
Manual
Design Temperature:
-20℃ ~ +70℃
Emergency shutt-off valve
Nominal Pressure:
0.6 MPa
Material:
Aluminum Alloy
Operation Mode:
Pneumatic
Temperature Range:
-20℃ ~ +70℃
Overflow prevention probe
Operating Voltage:
12 VDC
Explosion-Proof Rating:
Exia IIB T4
Response Time:
< 1 s
Design Temperature:
-40 ℃ ~ +60 ℃
Operating Current:
< 5 mA
Operating Medium:
Light fuel oil

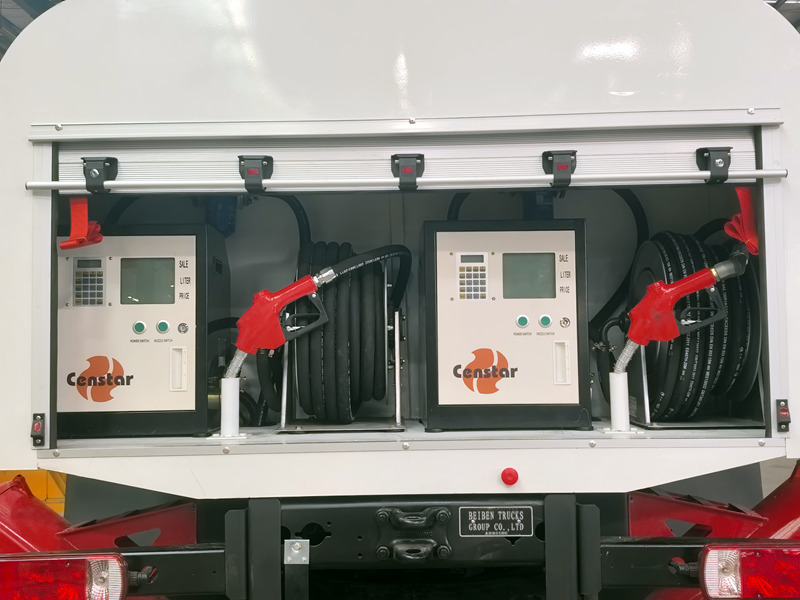

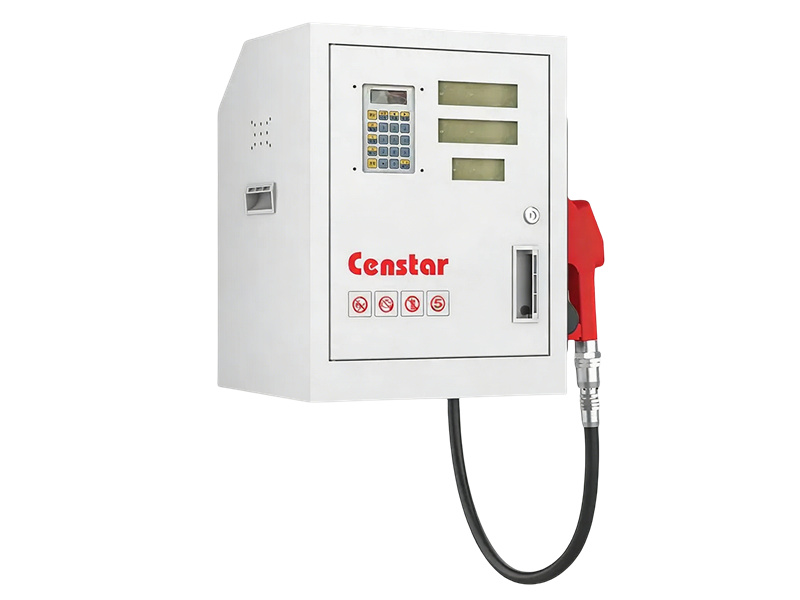

Fuel dispenser
Flow Rate:
80 litres/min
Metering System:
Digital flow meter with accuracy ±0.25%
Power Supply:
150 microns
Hose Reel:
20 meters hose with auto rewind hose reel
Working Temperature:
-40ºC to+55ºC
» Ⅳ. Product Details:
» Ⅴ. Tanker Production Line:

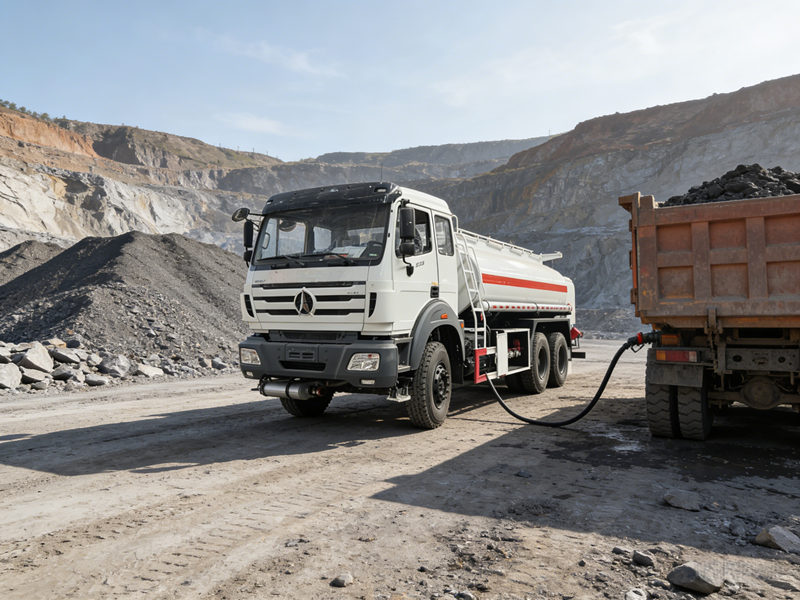

» Ⅶ . Product Applications:
Products --100% china beiben factory trucks!
Shipping --100% fast, Convenience, Efficient!
1.Beiben 4x2, 4x4, 6x4, 6x6, 8x4, 8x8 drive fuel tanker trucks for option
2. Factory direct sale, supply Beiben 10000 liters~30000 liters capacity oil tanker trucks
3.Tanker body can be divided into multiple compartments for transporting different media..
4. Carbon steel, stainless steel, aluminum alloy material is optional.
