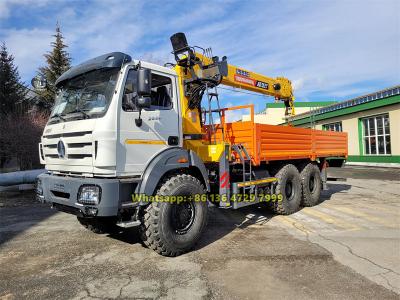

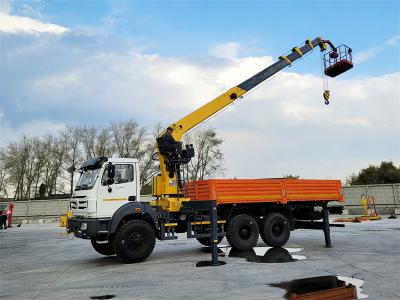

El camión pluma de servicio todoterreno Beiben 6×6 es un vehículo de ingeniería de gran tamaño que integra un chasis todoterreno de alta resistencia con una eficiente capacidad de elevación. Con un robusto motor de 340 caballos de fuerza, tracción total y un chasis todoterreno profesional, garantiza una excelente movilidad en terrenos complejos. Equipado con la grúa telescópica SQS200, alcanza una capacidad máxima de elevación de 8 toneladas y una altura de trabajo de hasta 16,7 metros. Su sistema hidráulico combinado de doble bomba permite operaciones de elevación eficientes y flexibles, lo que lo convierte en una solución fiable para tareas pesadas en zonas remotas y obras de construcción.
Precio de mercado:
$35000Capacidad de trabajo:
8000 kgTipo de cabina:
NG80B short cabin, 2 seatsDimensión (mm):
9800×2500×3980Sistema de propulsión:
6×6Distancia entre ejes (mm):
4450+1450potencia del motor:
340HP/WP10.340E32Caja de cambios:
12JS200TObservación:

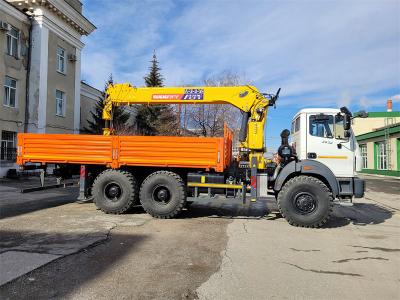

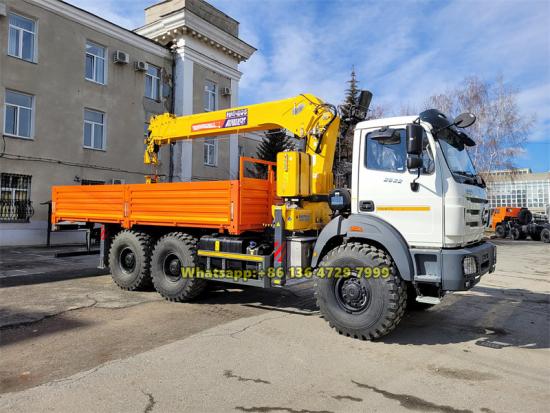

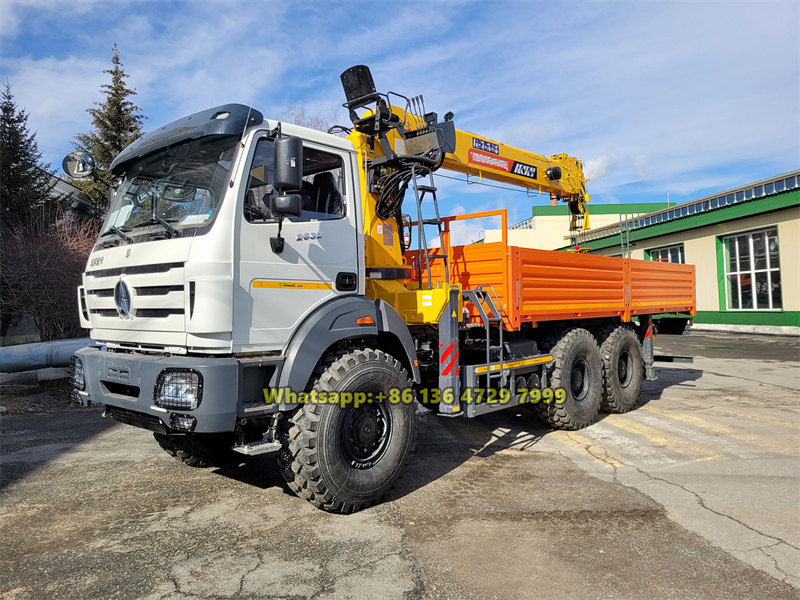

14.00R20 tires, XCMG, palfinger/unic crane for optionLa grúa montada en camión Beiben 6×6 con tracción total es un gran vehículo de ingeniería que combina el transporte todoterreno de alta resistencia con una eficiente capacidad de elevación. Está construida sobre el chasis Beiben 2634 y equipada con un robusto motor diésel Weichai de 340 HP. El vehículo destaca por su capacidad de carga y, gracias a su sistema de tracción total, la transmisión FAST de 12 velocidades y la robusta suspensión de ejes, garantiza una excepcional movilidad todoterreno y una manipulación estable de la carga en condiciones adversas.
The XCMG SQS200 four-section telescopic crane offers a maximum lifting capacity of 8 tons and a lifting moment of 20 ton-meters, with an operating height of up to 16.7 meters. Its dual-pump combined hydraulic system enhances the efficiency and flexibility of combined operations.

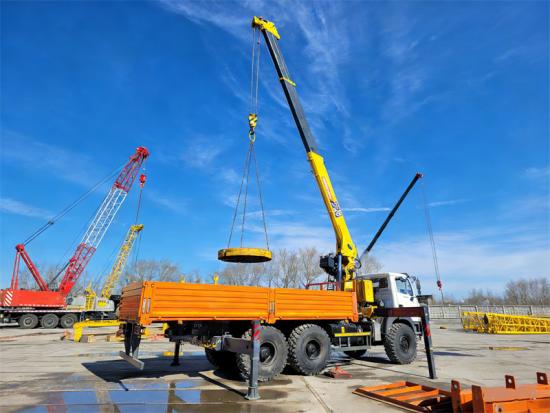

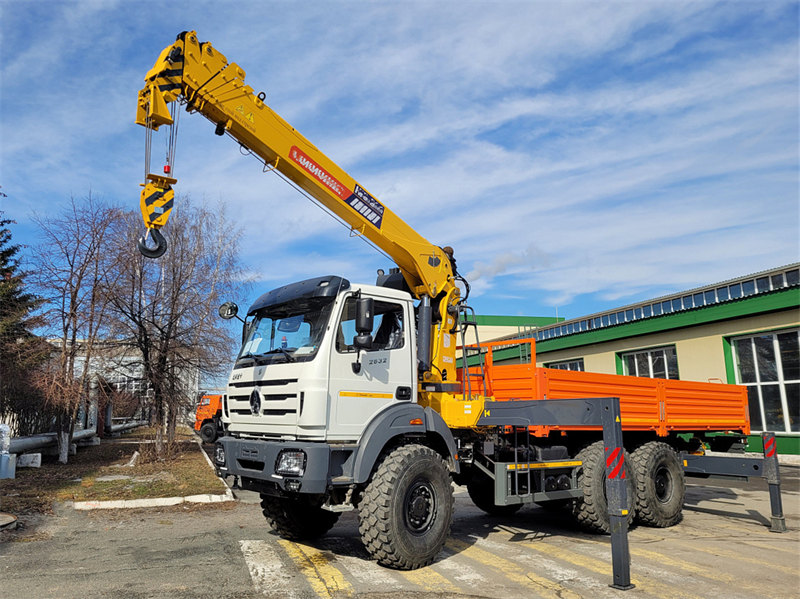

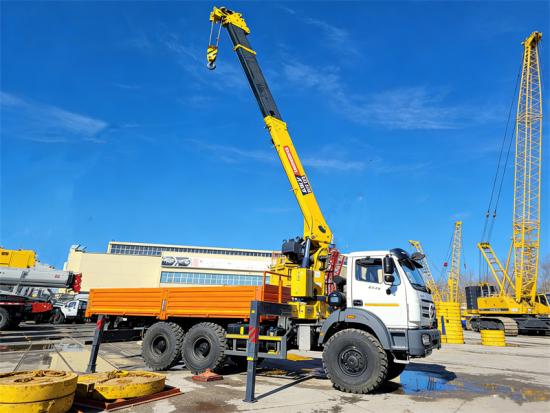

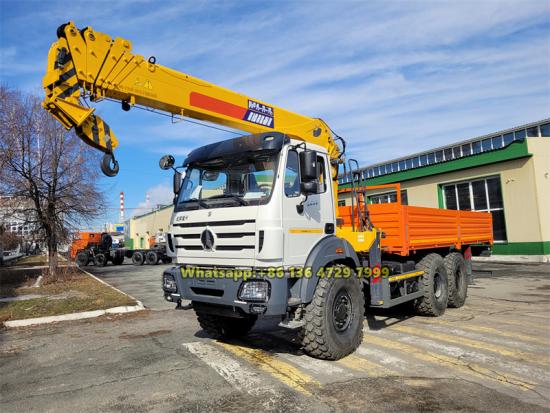

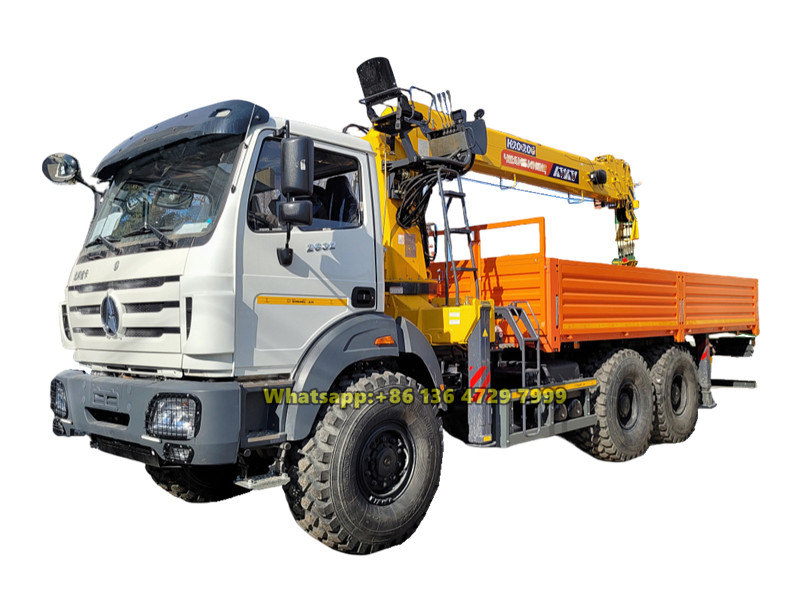

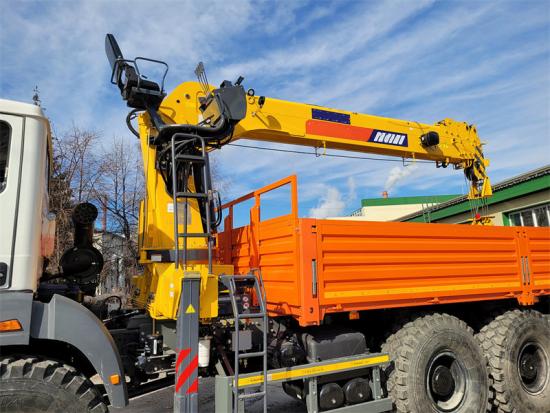

Beiben 6×6 vehicle mounted hydraulic crane

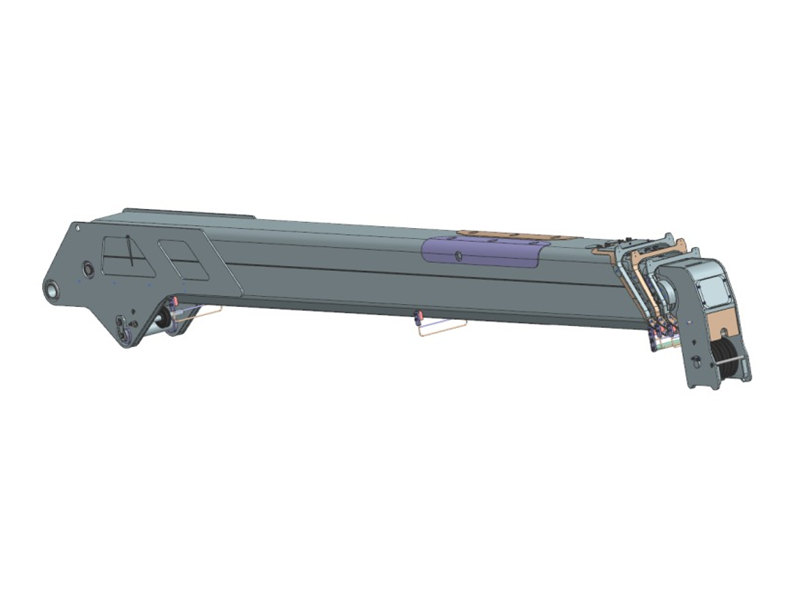

demonstrates a high degree of professionalism. The crane features a classic hexagonal boom structure and a single-cylinder wire rope synchronous telescoping mechanism, balancing structural strength with operational efficiency.
CEEC factory
is authorized supplier on beiben crane trucks,
guarantee all beiben boom crane trucks Brand-New and High-Quality.
» Ⅰ. Product Introduction:
Manufacturer: CEEC TRUCKS
▶ Chassis: Beiben 6×6 chassis, NG80B short cabin, Weichai 340HP diesel engine, Fast 12-speed gearbox
▶ Crane model: SQS200-4
▶ Crane lifting capacity: 8 tons
▶ Outriggers: 2 front outriggers and 2 rear outriggers
▶ Cargo box dimensions: 7000×2500×600 mm
» Ⅱ. Product Specifications:
|
Product Technical Specifications |
||
|
Product Name |
Beiben 6 × 6 off road vehicle mounted hydraulic crane |
|
|
Chassis Model |
Beiben 2634 |
|
|
Fuel type |
Diesel |
|
|
Emission Standard |
Euro 3 |
|
|
Cabin |
Beiben NG80B |
|
|

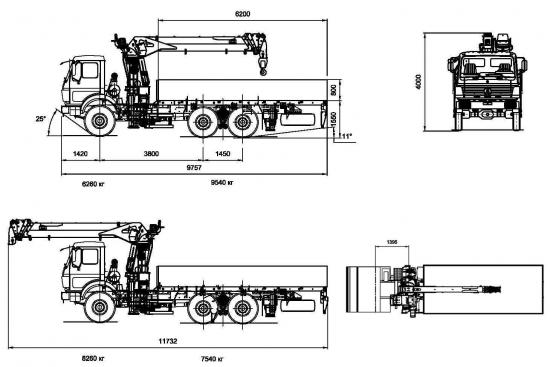

Vehicle main dimensions (mm) |
Overall dimensions (L×W×H) |
9800*2500*3980 |
|
Cargo box dimensions |
7000*2500*600 |
|
|
Wheelbase |
4450+1450 |
|
|
Front overhang |
1420 |
|
|
Rear overhang |
2850 |
|
|
Weight data (kg) |
G.V.W |
26000 |
|
Curb weight (chassis) |
14800 |
|
|
Max payload |
20000-25000 |
|
|
Vehicle main performance |
Max. speed (km/h) |
80 |
|
Max. slope of climb (%) |
30 |
|
|
Engine |
Model |
WP10.340E32 |
|
Maximum power |
250kw / 340hp |
|
|
Number of cylinders |
6 |
|
|
Displacement (L) |
9.726 |
|
|
Engine Manufacturer |
WEICHAI |
|
|
Gear box |
Brand |
FAST |
|
Type |
Manual, 12JS200T |
|
|
Number of gears |
12 forward gears & 2 reverse |
|
|
Axle |
Front load capacity |
7000 kg |
|
Rear load capacity |
13000+13000 kg |
|
|
Suspension |
Front/rear leaf spring |
10/13 |
|
Steering Wheel |
left/right hand drive |
LHD |
|
Brake system |
Service brake |
Air brake |
|
Electric device |
Rated voltage |
24V |
|
Tyres & Quantity |
14.00R20, 6+1 pcs |
|
|
Crane Specifications |
||
|
Model |
SQS200 |
|
|
Type |
Telescopic boom crane, 4 sections |
|
|
Max Lifting Capacity (kg) |
8000 |
|
|
Maximum lift height (m) |
16.7 |
|
|
Working radius (m) |
15 |
|
|
Max Lifting Moment (t.m) |
20 |
|
|
Flow of Hydraulic System (L/min) |
55+55 |
|
|
Pressure of Hydraulic System (MPa) |
25 |
|
|
Hydraulic Oil Tank Capacity (L) |
200 |
|
|
Rotation Angle (°) |
360 ° all rotation |
|
|
Crane Weight (kg) |
3370 |
|
|
Installation Space (mm) |
1300 |
|
|

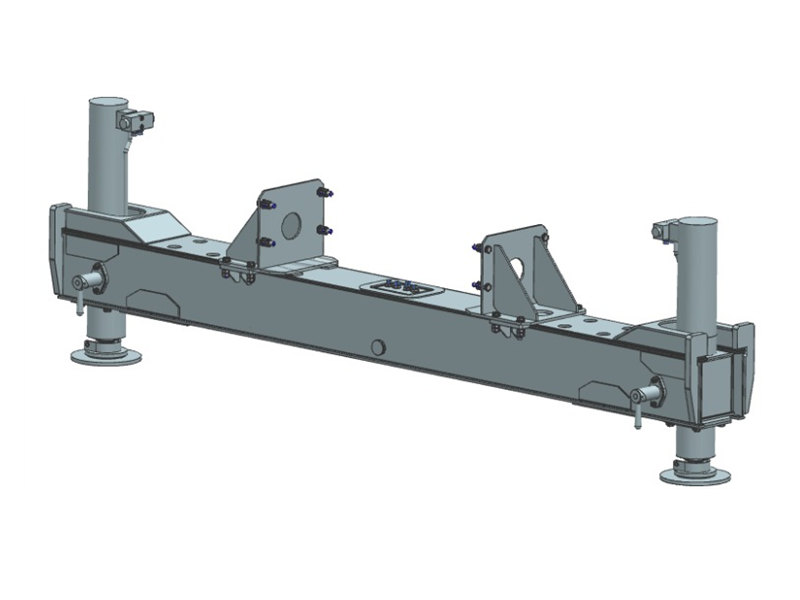

Outriggers |
2 front and 2 rear |
|
|
Outrigger span (mm) |
2318~5908 |
|

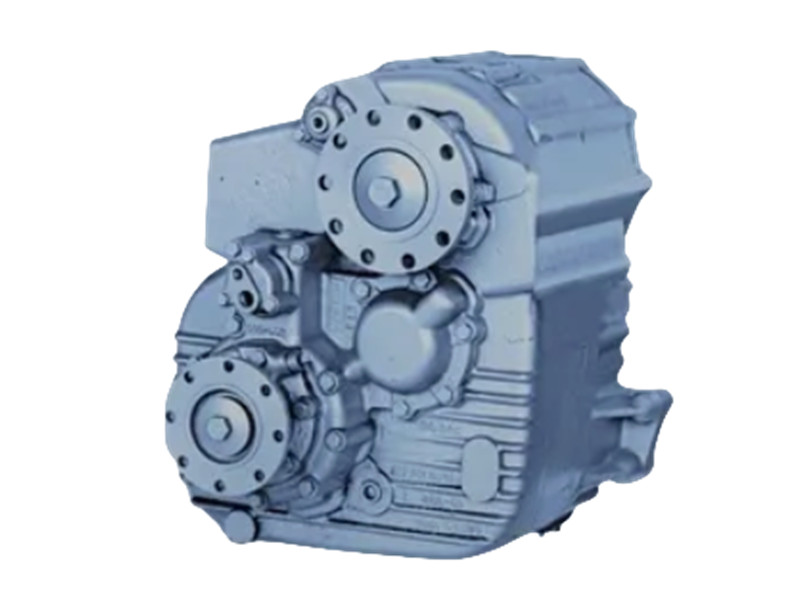

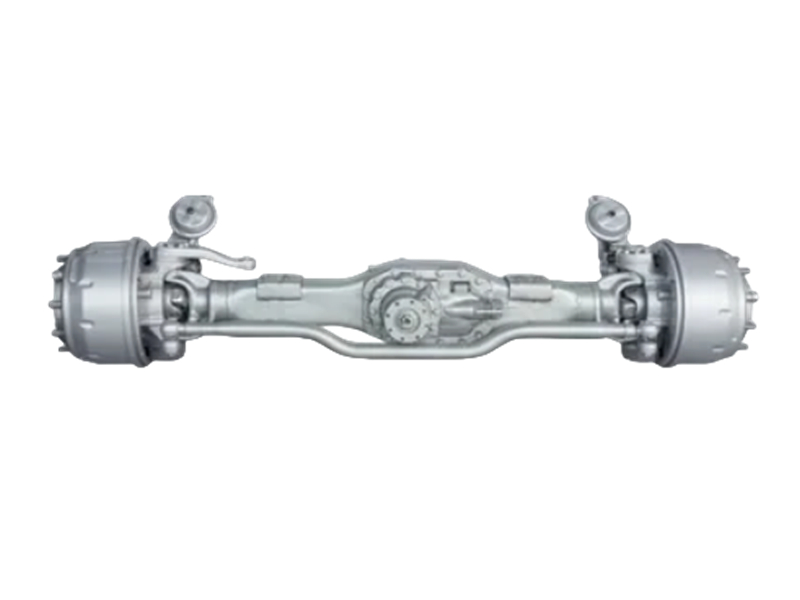

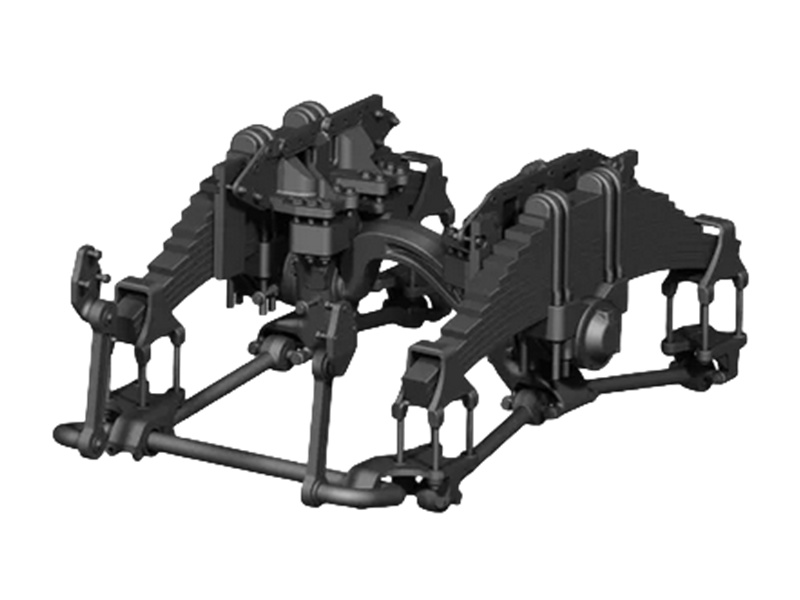

» Ⅲ. Chassis Advantages:
» Ⅳ. SQS200-4 Crane Specifications:
Crane parameters:
|
Item |
Unit |
SQS200-4 |
|
Max. lifting capacity |
kg |
8000 |
|
Max. lifting moment |
T.M |
20 |
|
Recommended power |
kw |
45 |
|
Max oil flow of hydraulic system |
L/MIN |
55+55 |
|
Max pressure of hydraulic system |
Mpa |
25 |
|
Oil tank capacity |
L |
200 |
|
Crane weight |
kg |
3370 |
|
Installation space |
mm |
1300 |
|
Rotation angle |
° |
All rotation |
Rated lifting load
|
SQS200-4 |
|||||
|
working radius(M) |
Max lifted load(kg) of different arm lengths |
||||
|
5.1m |
7.7m |
10.3m |
12.8m |
15.4m |
|
|
5.00 |
4300 |
3800 |
3400 |
3270 |
2700 |
|
7.50 |
|
2400 |
2350 |
2250 |
1990 |
|
10.00 |
|
|
1660 |
1580 |
1500 |
|
12.50 |
|
|
|
1200 |
1100 |
|
15.50 |
|
|
|
|
700 |
» Ⅴ. Crane features and options:

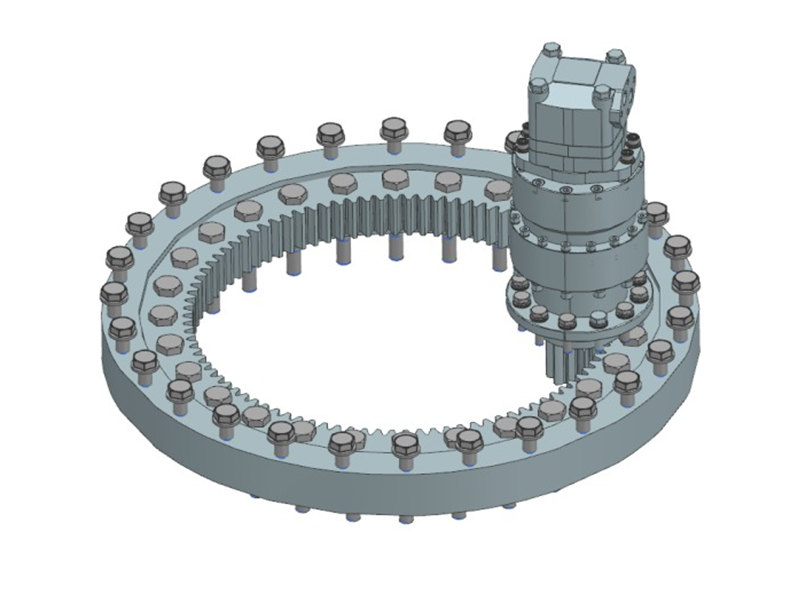

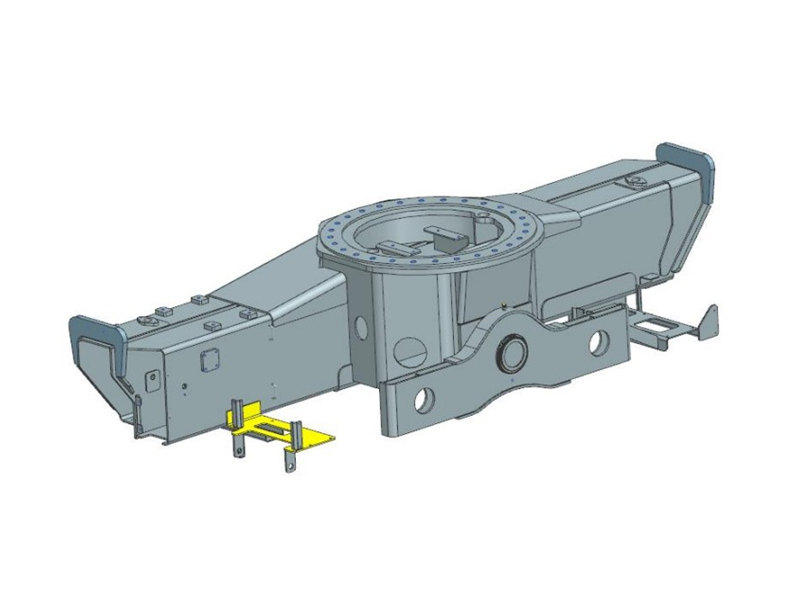

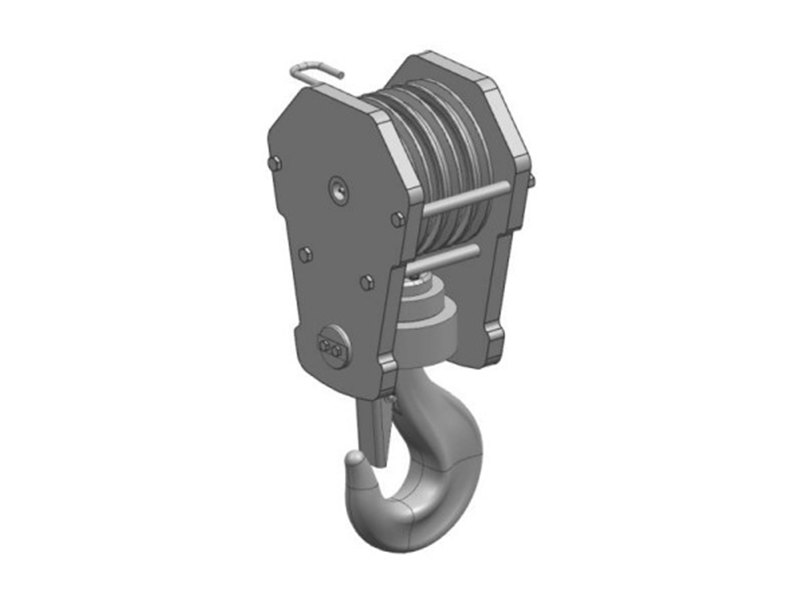

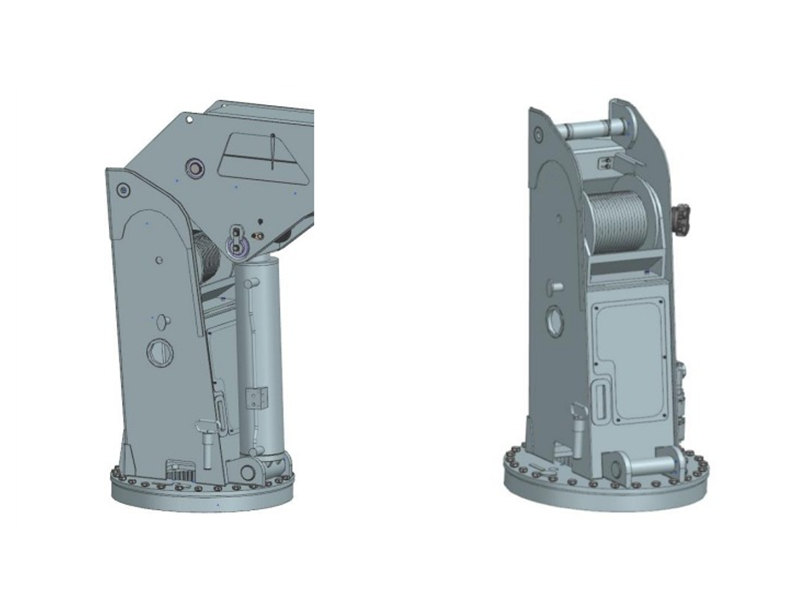

» Ⅵ. Crane Structure:

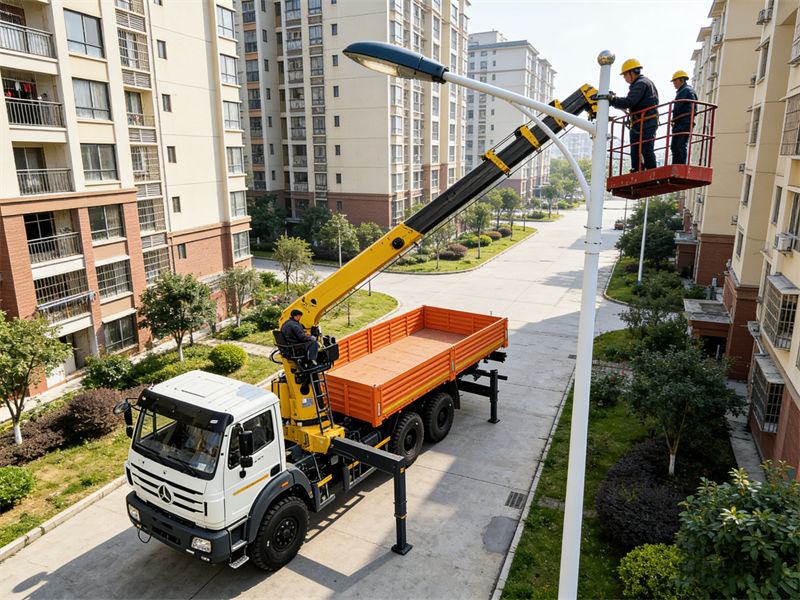

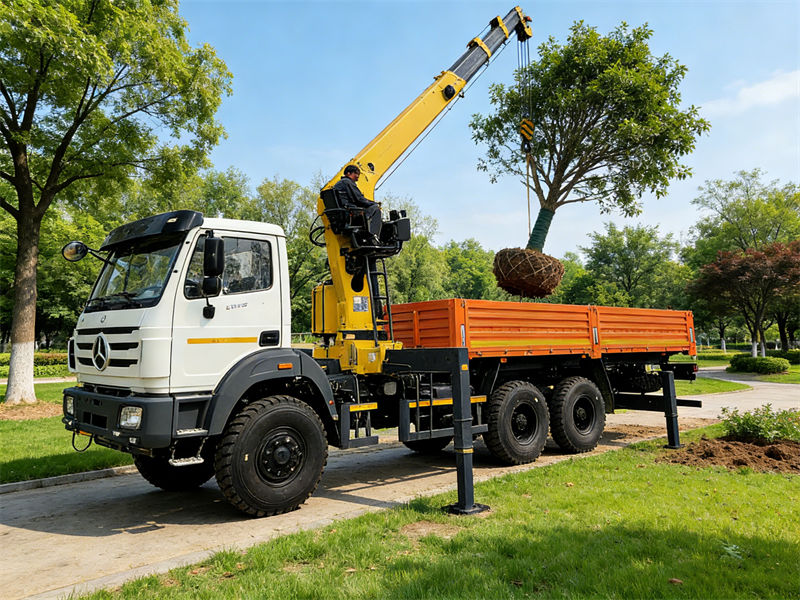

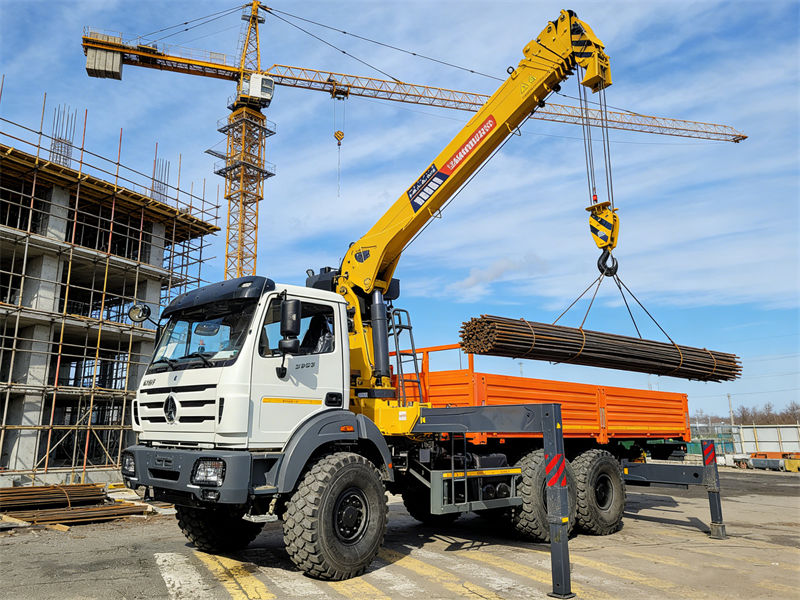

» Ⅶ . Product Applications:
Products --100% china beiben factory trucks!
Shipping --100% fast, Convenience, Efficient!
1.Beiben 4x2, 4x4, 6x4, 6x6, 8x4, 8x8 drive boom crane trucks for option
2. Factory direct sale, supply Beiben crane trucks with lifting capacity 5000kg to 25000kg
3. XCMG, Palfinger, UNIC, ZOOMLION telescopic or knuckle boom cranes for option
4. Optional: remote control, moment limited valve, high sesat on column, drill, etc .
