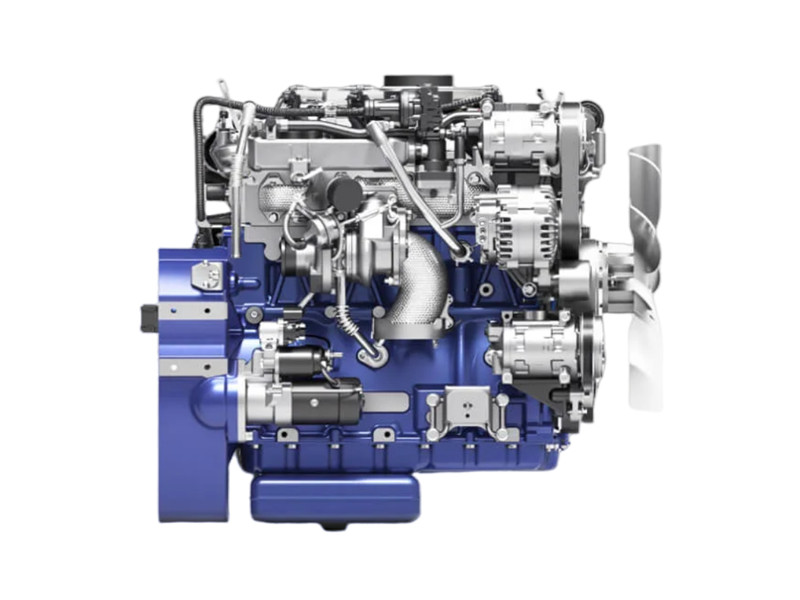

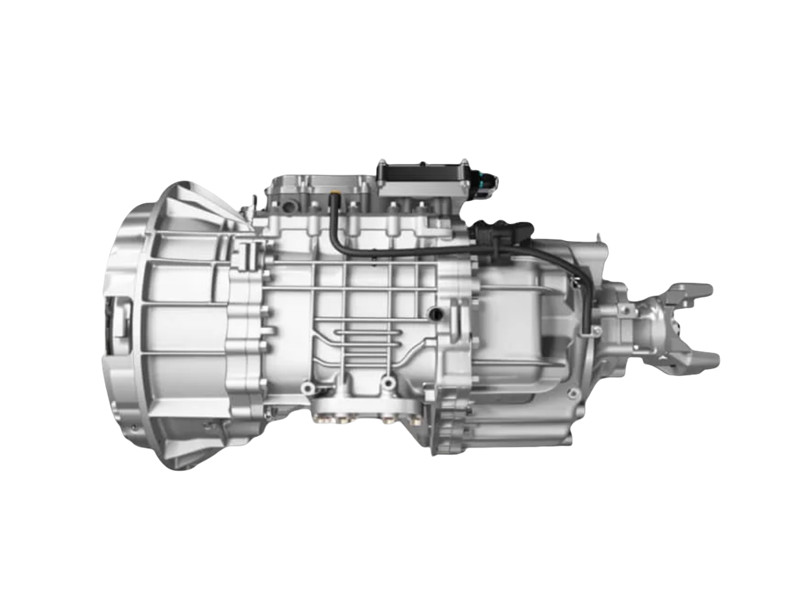

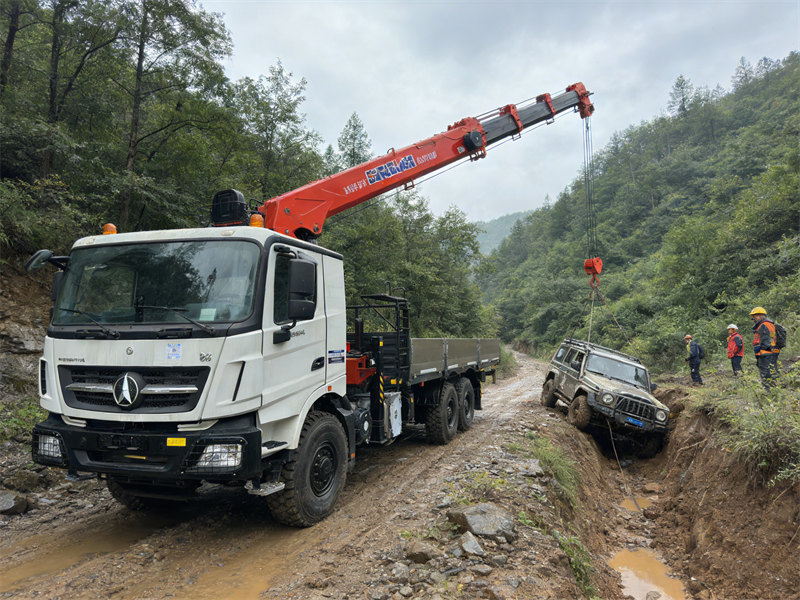

El camión grúa Beiben 6×6 es un vehículo pesado para operaciones especiales que combina un robusto chasis todoterreno con una eficiente función de elevación. Está propulsado por un motor Weichai de 430 caballos de fuerza con certificación de emisiones China V (National V), acoplado a una transmisión FAST de 12 velocidades y un sistema de tracción 6×6, lo que le garantiza un rendimiento excepcional en carreteras en condiciones difíciles. El chasis combina un eje delantero de 7 toneladas y un eje trasero de 13 toneladas, con una masa bruta vehicular de 25 toneladas. Esta configuración garantiza la estabilidad de la carga, a la vez que proporciona una capacidad de carga útil efectiva de 14 toneladas, adaptable a diversas necesidades de ingeniería y transporte.

The Beiben 6×6 Stiff Boom Crane Truck is outfitted with an S2505 hexagonal telescopic boom crane, boasting a maximum lifting torque of 25 ton-meters, a working height of 21.4 meters, and a coverage radius of 18.6 meters. It comes with dual-stage telescopic front outriggers. Its hydraulic system utilizes imported multi-valve blocks and piston pumps, enabling precise combined movements and efficient energy conversion. Combined with the 18.6-meter boom length and a single crane design, it is particularly suited for lifting tasks in confined spaces. Overall, the vehicle strikes a balance between off-road maneuverability and on-site operational efficiency.

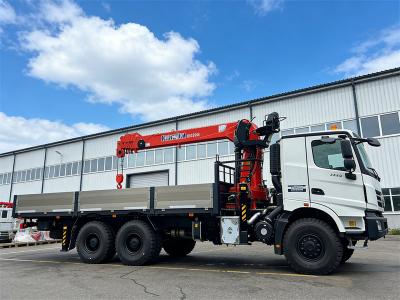

* Beiben 6×6 utility truck with crane *

CEEC factory is authorized supplier on beiben crane trucks,
guarantee all beiben boom crane trucks Brand-New and High-Quality.

» Ⅰ. Product Introduction:

Manufacturer: CEEC TRUCKS

▶ Chassis: Beiben 6×6 chassis, V3 cabin, Weichai 430HP diesel engine, 14.00R20 single tires

▶ Crane model: S2505, 5 sections

▶ Crane lifting capacity: 10 tons

▶ Outriggers: 2 front outriggers and 2 rear outriggers

▶ Cargo box dimensions: 7200×2550×600 mm

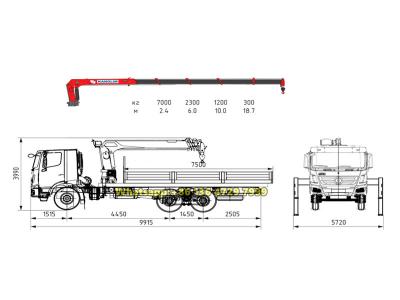

» Ⅱ. Product Specifications:

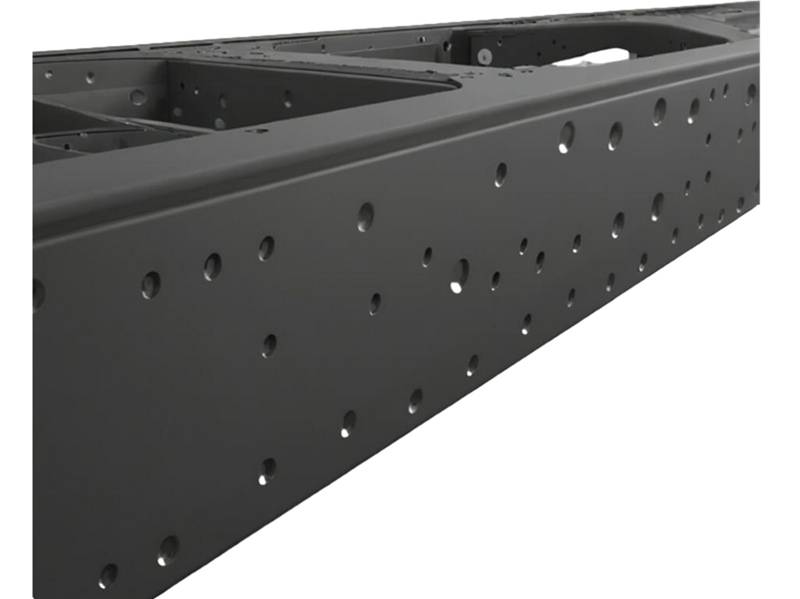

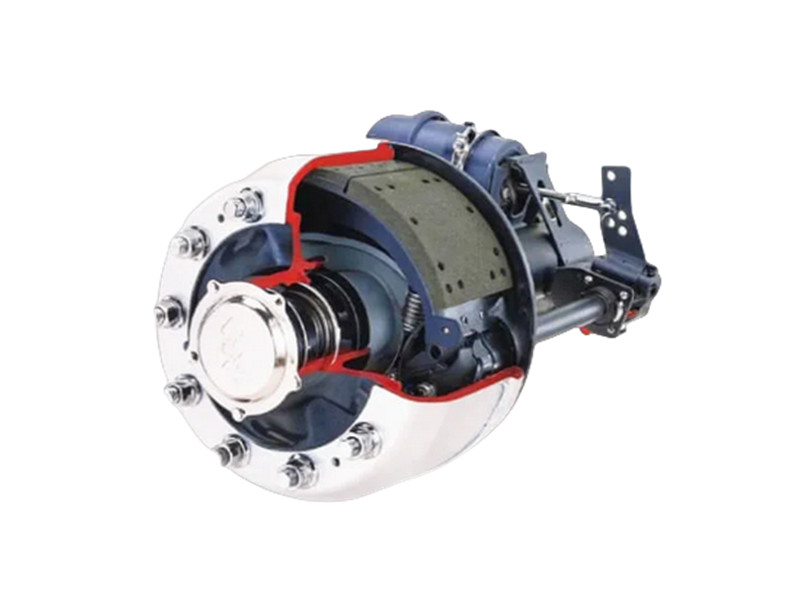

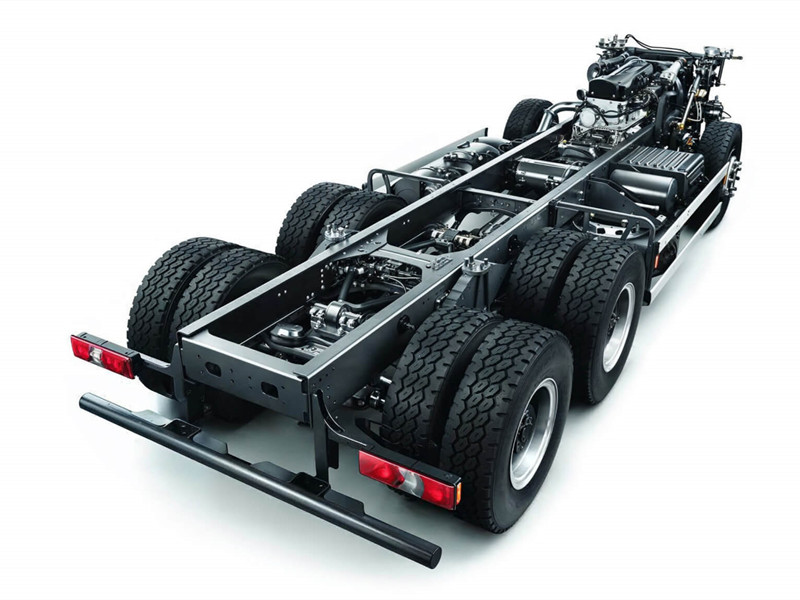

» Ⅲ. Chassis Advantages:

» Ⅳ. S2505 Crane Specifications:

Crane Advantages:

1. Extensive Application Scope: An 18.6-meter boom length and a single crane height of 2500 mm after installation ensure adaptability to various narrow road conditions and strong passability.

2. Dual-Stage Outriggers: The unique dual-stage front outrigger structure offers fast extension/retraction speed and a generous 7000 mm span.

3. High Operational Efficiency: The system features imported main valves for better combined operation and fine control. Standard imported piston pumps ensure excellent kinetic energy conversion and high work efficiency.

Crane parameters:

Key Parameter	Parameter Value
Max. Lifting Capacity	10000
Rated Lifting Moment	25
Max. Working Radius	18.6
Max. Lifting Height	21.4
Boom Sections	5
Max. Elevation Angle	80
Slewing Angle	360
Outrigger Span	7000
System Flow Rate	65
Crane Dead Weight	4300
Rated System Pressure	30

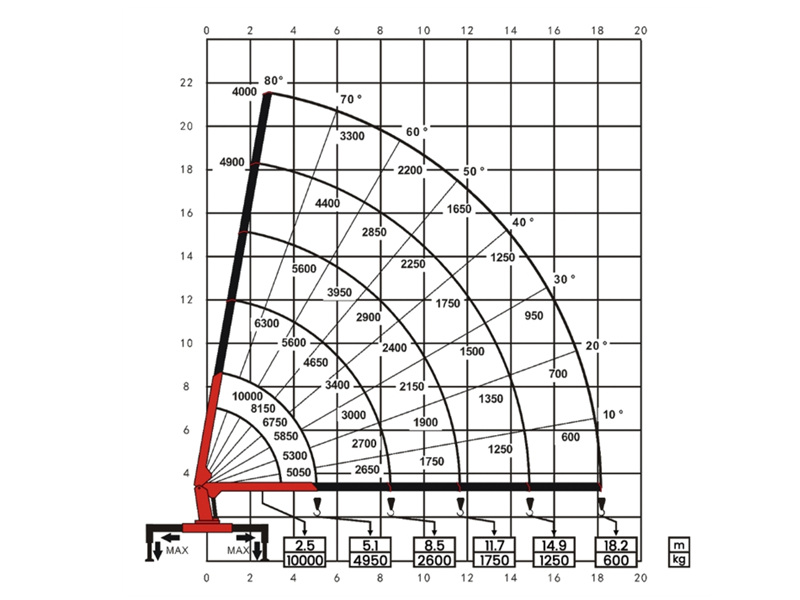

Rated lifting load

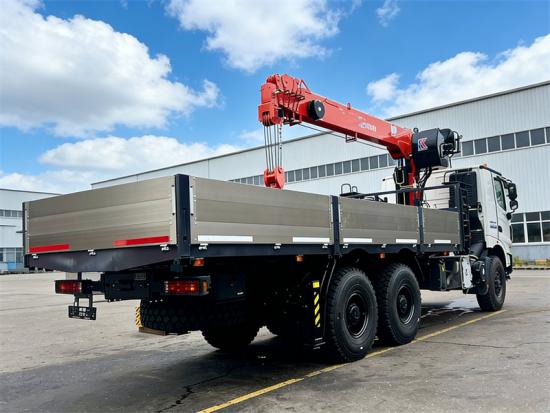

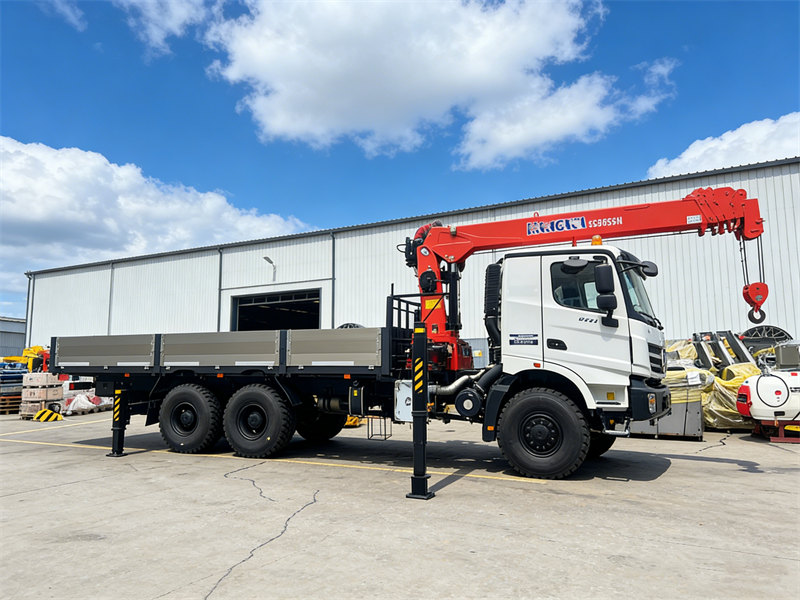

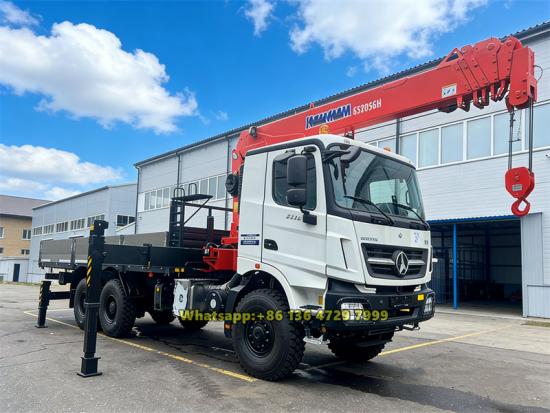

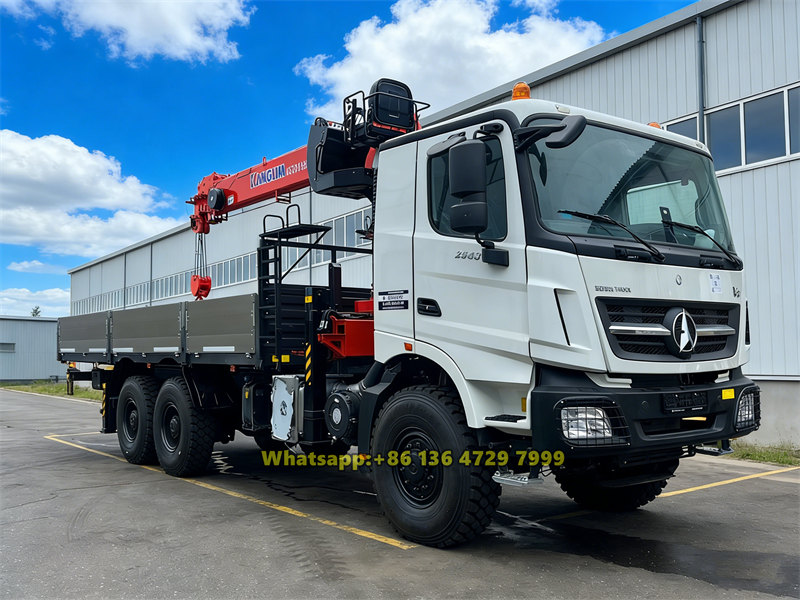

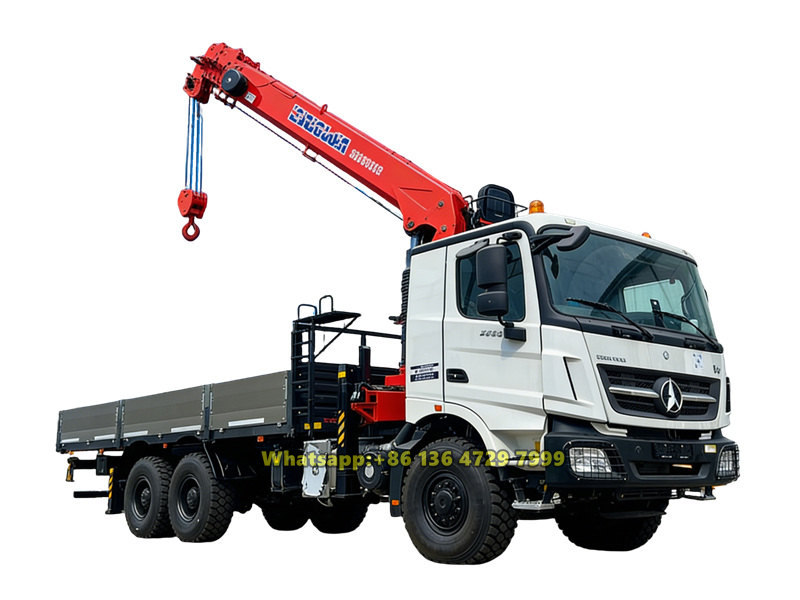

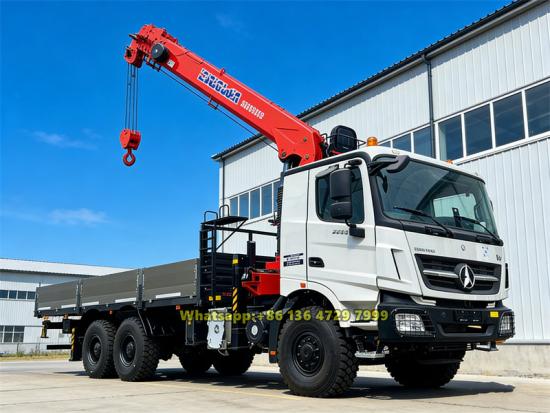

» Ⅴ. Product Pictures:

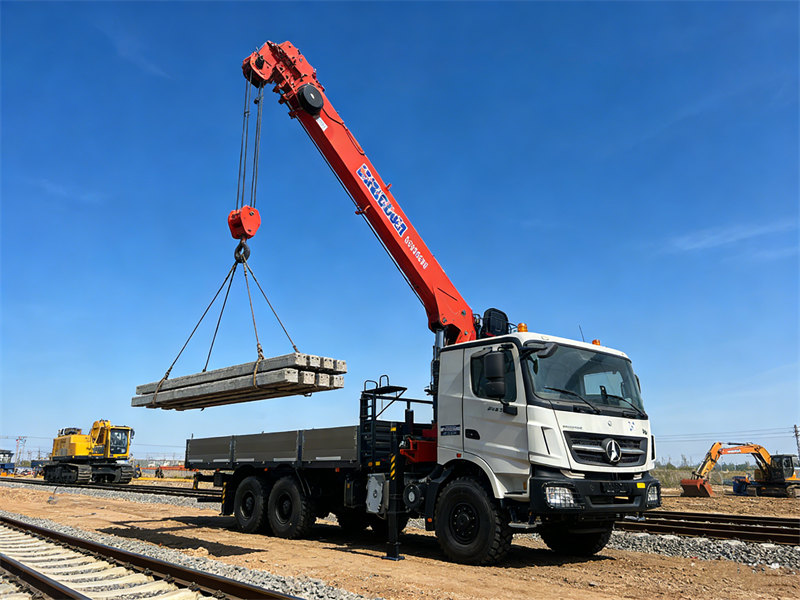

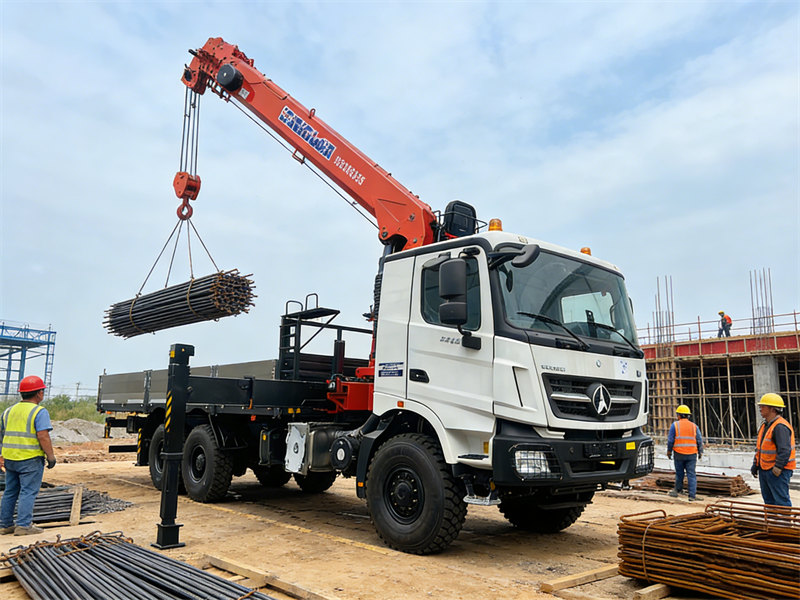

» Ⅵ . Product Applications:
