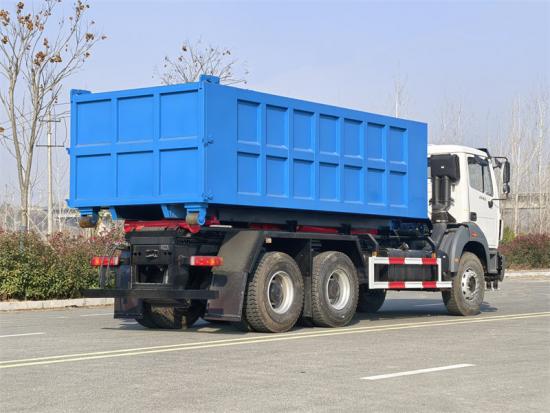

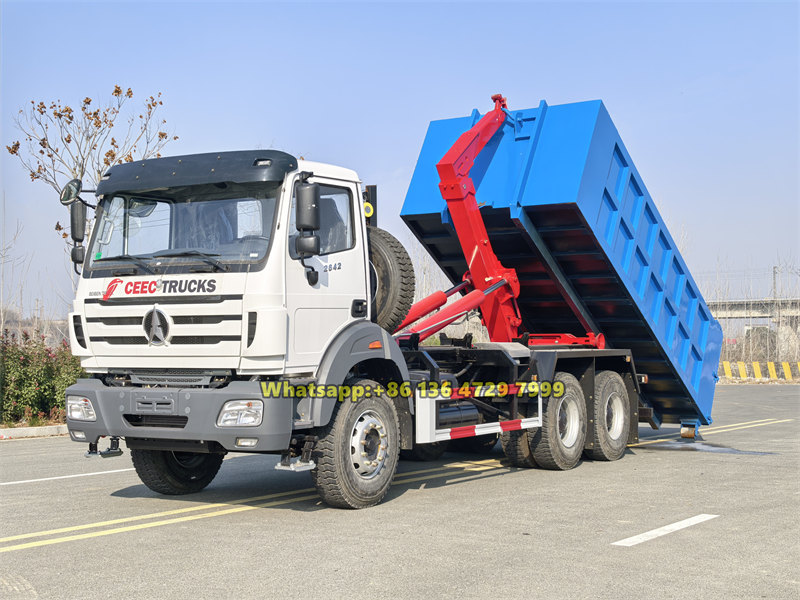

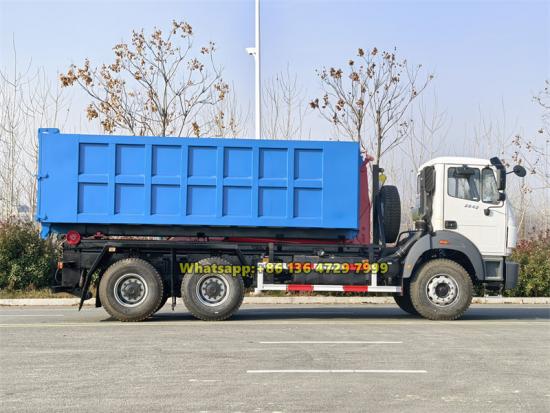

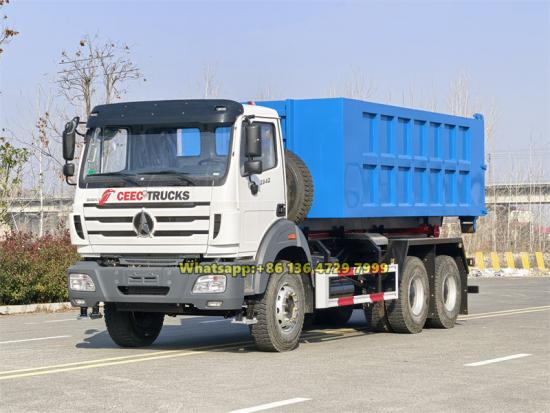

Camión con gancho Beiben de 20 toneladas, África Occidental
El camión con gancho Beiben de 20 toneladas es un vehículo de alta eficiencia para la retirada de residuos pesados. Construido sobre un chasis Beiben 6×4 de alta resistencia, cuenta con un motor de 420 HP y un sistema hidráulico de gancho de 20 toneladas. Su principal ventaja reside en la rápida carga y descarga de contenedores de basura estándar de 20 metros cúbicos, completando un ciclo operativo en menos de dos minutos. Este diseño logra una separación altamente eficiente entre las etapas de recogida y transferencia de residuos, lo que permite operaciones de alta intensidad.
Precio de mercado:
$56000Capacidad de trabajo:
20 tonsTipo de cabina:
NG80B long cabin, with sleeperDimensión (mm):
8660×2550×3390Sistema de propulsión:
6×4Distancia entre ejes (mm):
4100+1450potencia del motor:
420HP/WP12.420E32Caja de cambios:
12JS200TObservación:
20-ton hooklift system, 20CBM garbage container
El camión de basura con gancho Beiben de 20 toneladas es un vehículo especializado para la recolección y transporte de basura con contenedores desmontables, construido sobre un chasis Beiben de alta resistencia. Su función principal es la carga, descarga y transporte rápidos de contenedores de residuos estándar mediante su sistema hidráulico de brazo de gancho. Todo el vehículo utiliza el chasis reforzado Beiben 2642, propulsado por un motor diésel de la serie WP12 de 420 HP y una transmisión manual de 12 velocidades, que proporciona una gran potencia y una alta capacidad de carga.

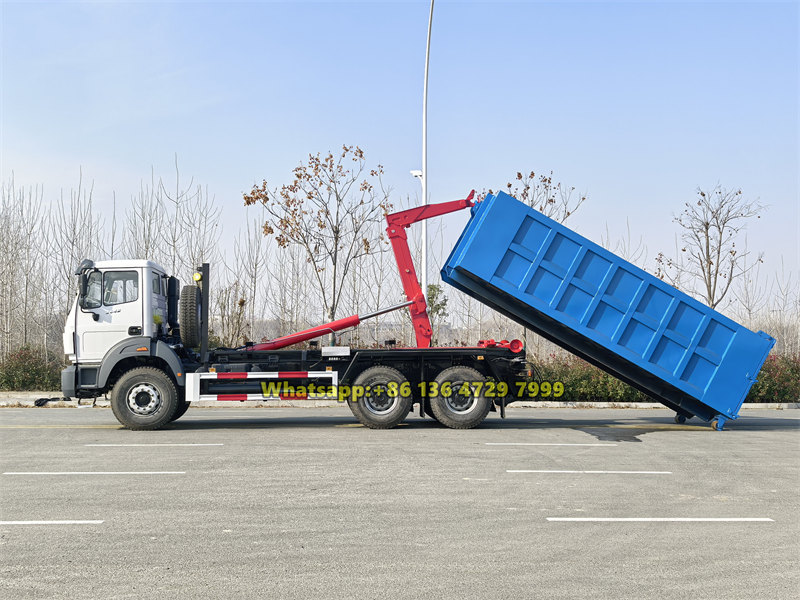

This
Beiben roll-off hooklift truck
is equipped with a hydraulic hooklift system boasting a maximum lifting capacity of 20 tons. It features a dual-side mechanical locking mechanism and 1060mm wide guide rails, enabling it to load a garbage container in approximately 60 seconds. The complete cycle for unloading and tipping the container does not exceed 110 seconds. The 20-cubic-meter reinforced garbage container is manufactured from 4-5mm carbon steel plates and can accommodate loads from 15 to 20 tons. The vehicle integrates a dual-mode (manual and electronic control) operating system and a fully hydraulic drive mechanism, realizing an efficient and reliable modular waste collection and transport cycle.
CEEC factory
is authorized supplier on beiben garbage trucks,
guarantee all beiben hook loader trucks Brand-New and High-Quality.
» Ⅰ. Product Introduction:
Manufacturer: CEEC TRUCKS

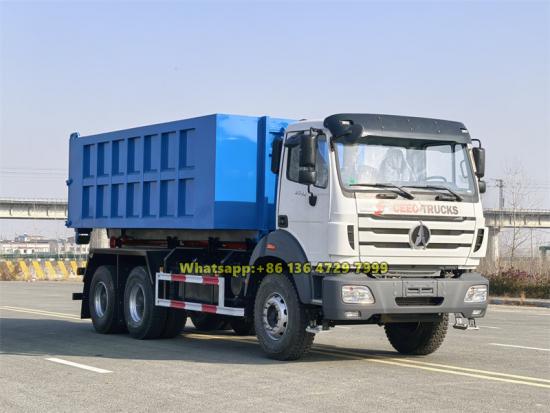

▶ Beiben 6×4 chassis: NG80B long cabin, Weichai 420HP diesel engine, Fast 12-speed gearbox

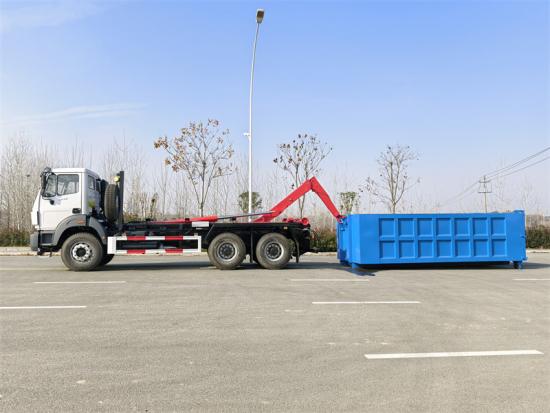

▶ Reliable hooklift system: Hook loader with lifting capacity up to 20 tons
▶ Garbage container: The volume is up to 20CBM, payload 15~20 ton
▶ Dumping angle: 50°, facilitating unloading and tilting of the container
▶ Hydraulic cylinders: China top brand
» Ⅱ. Product Specifications:
|
Beiben 10 wheels 20 ton hooklift garbage truck specifications |
||
|
Truck Chassis |
||
|
Chassis Model |
CEEC5260ZXX |
|
|
Overall Dimension |
8660 x 2550 x 3390 mm |
|
|
Gross Vehicle Weight |
26000 kg |
|
|
Curb Weight |
12800 kg |
|
|
Loading Weight |
20000 kg |
|
|
Wheel Base |
4100+1450 mm |
|
|
Front /Rear Axle |
7500 kg / 13000 kg x 2 |
|
|
Engine |
Model |
WP12.420E32 |
|
Type |
Diesel engine, four Stroke, 6 Cylinder in line, |
|
|
Power |
420HP(308KW) |
|
|
Displacement |
11596 ml |
|
|
Emission standard |
Euro 3 |
|
|
Rated speed |
|
|
|
Max. torque |
|
|
|
Gear box |

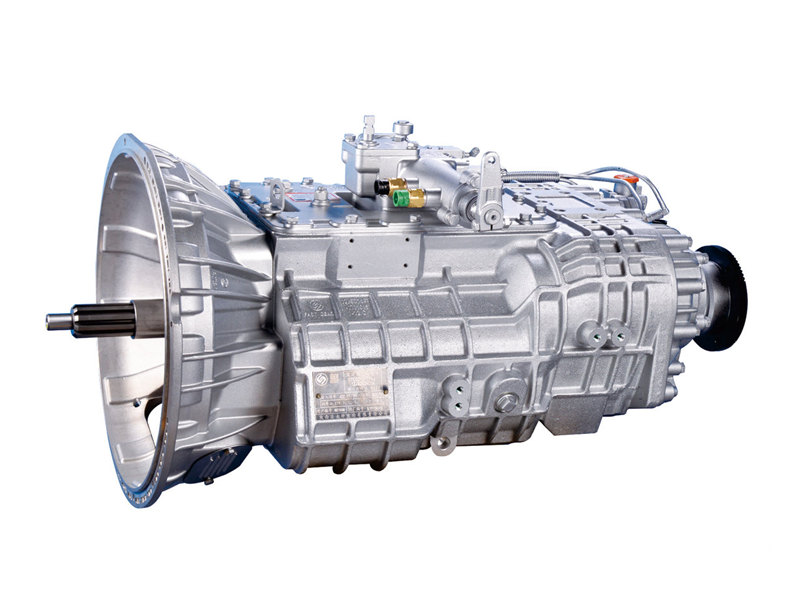

FAST 12JS200T, manual, 12-speed forward, 2-speed reverse |
|
|
Max Driving Speed |
90 km/h |
|
|
Cabin |
|
|
|
Tire |
12.00R20, 10 Units with 1 Spare Tire |
|
|
Fuel tank |
400L |
|
|
Hook Lift System |
||
|
Hook lift System |
Lifting Capacity |
20Ton |
|
Control |
Hydraulic Control |
|
|
Control Handles |
Mechanical Handle Control on side of truck |
|
|

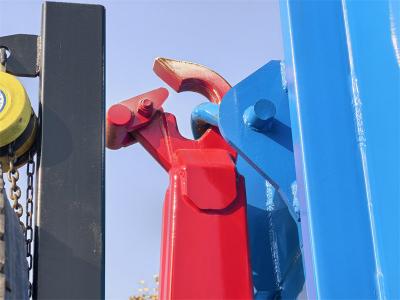

Locking |
2 Side Locking System |
|
|
Hook center height |
1570 mm |
|
|
Extension of hook arm |
1100 mm |
|
|
Width of guild rail |
1060 mm |
|
|
Tipping angle |
52 ° |
|
|

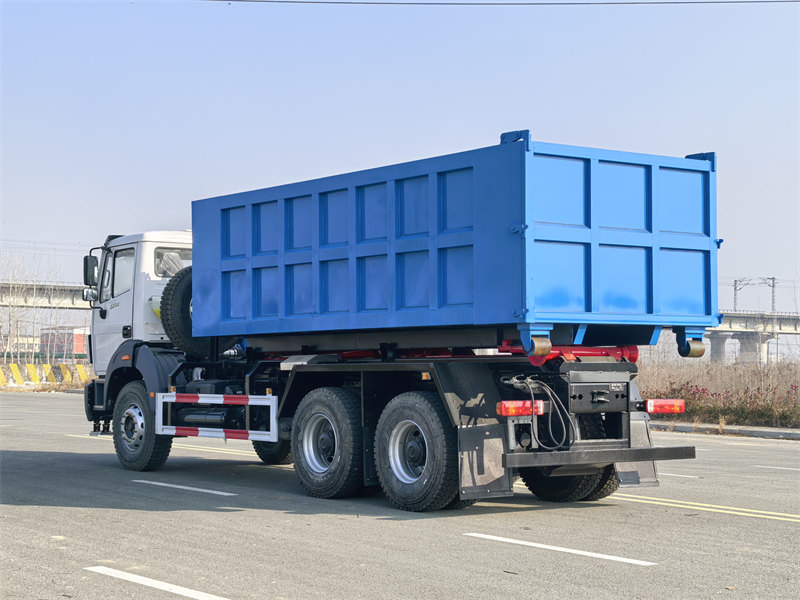

Garbage Box |
Capacity |
20 CBM |
|
Loading Weight |
15Ton ~ 20Ton |
|
|
Size |
5600 x 2300 x 1500 mm |
|
|
Material |
Q235B Carbon Steel, 4mm Side, 5mm Bottom, |
|
|
Wheel |
2 Side Rear Steel Wheels |
|
|
Loading System |
Hydraulic Hooking, Hydraulic Pulling & Tipping System |
|
|
Discharging System |
Hydraulic Tipping for Discharging, Mechanical Opening Doors |
|
|
Hydraulic system pressure |
28 Mpa |
|
|
Loading Working Time (s) |
≤ 60 S |
|
|
Unloading Working Time |
≤ 72 S |
|
|
Discharge Work Cycle Time |
≤ 110 S |
|
|
Control system |
Manual operation + electric remote control |
|

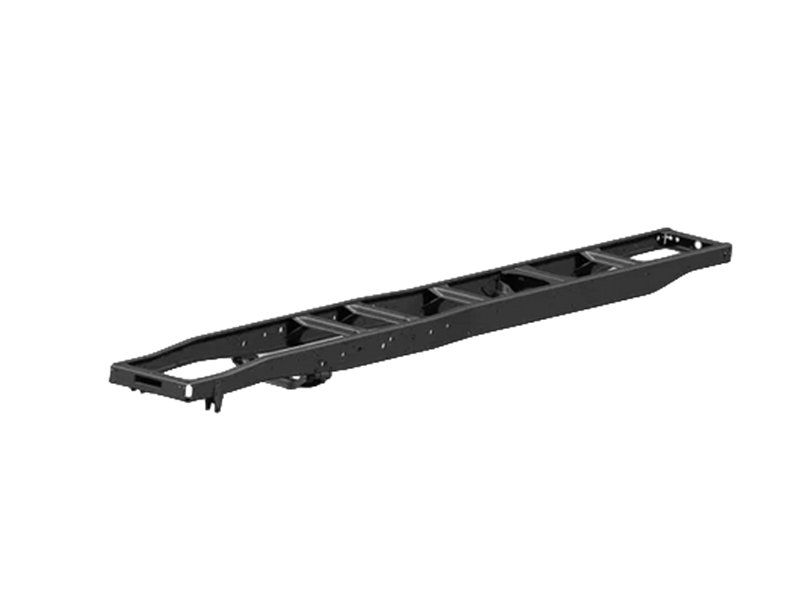

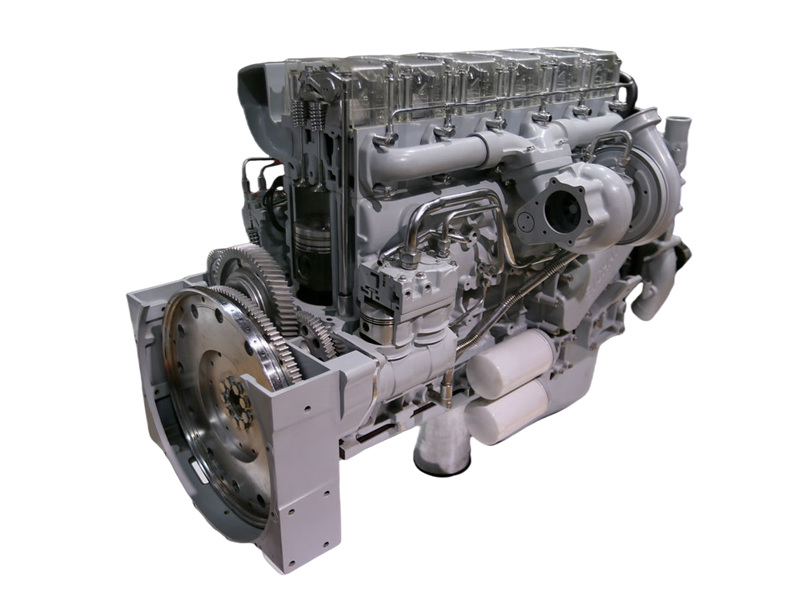

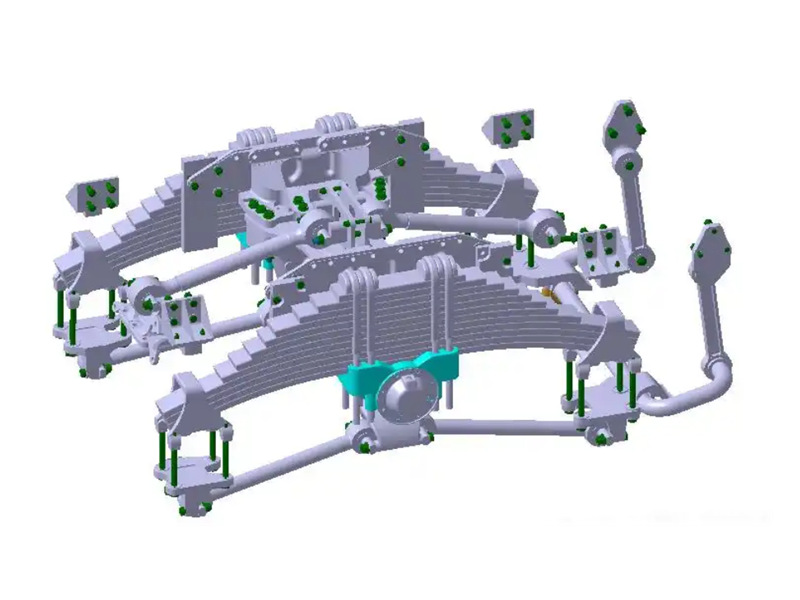

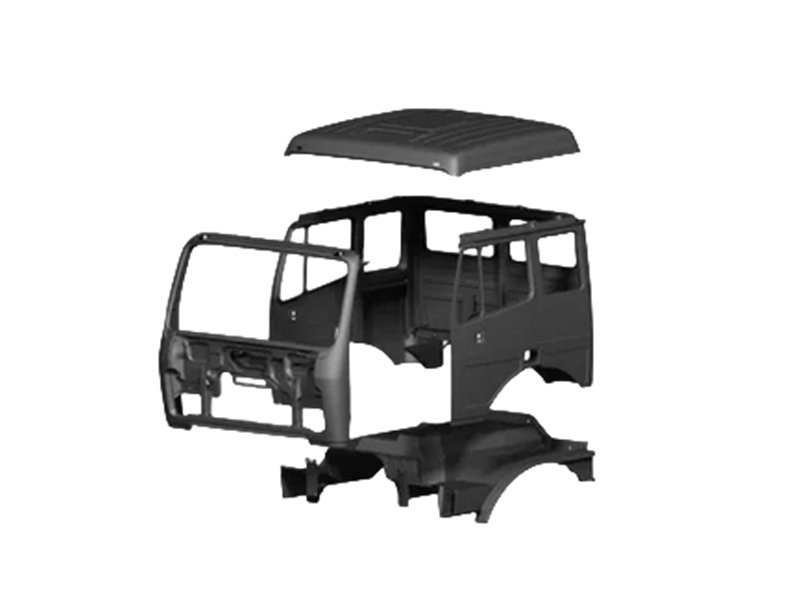

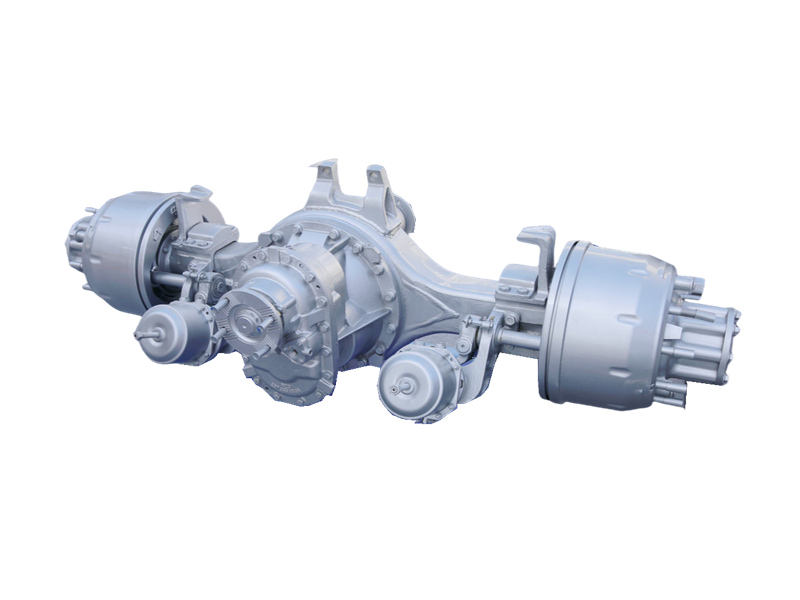

» Ⅲ. Chassis Features:

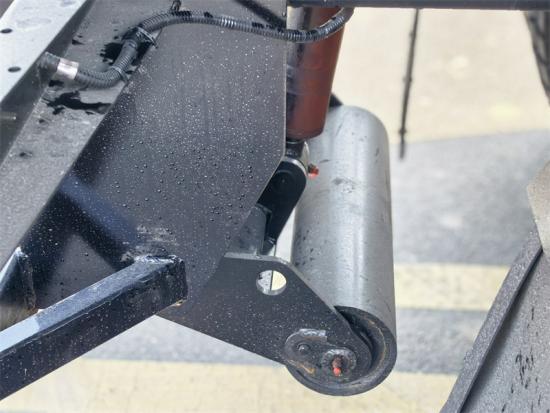

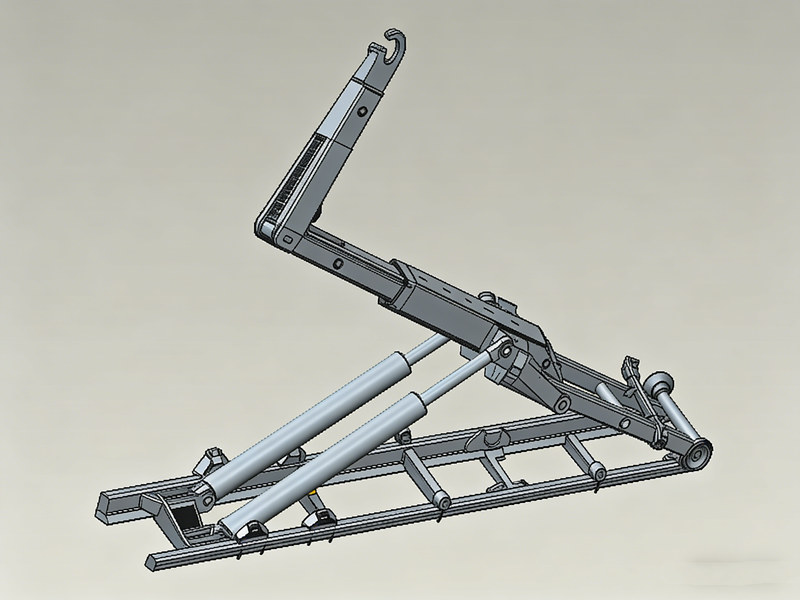

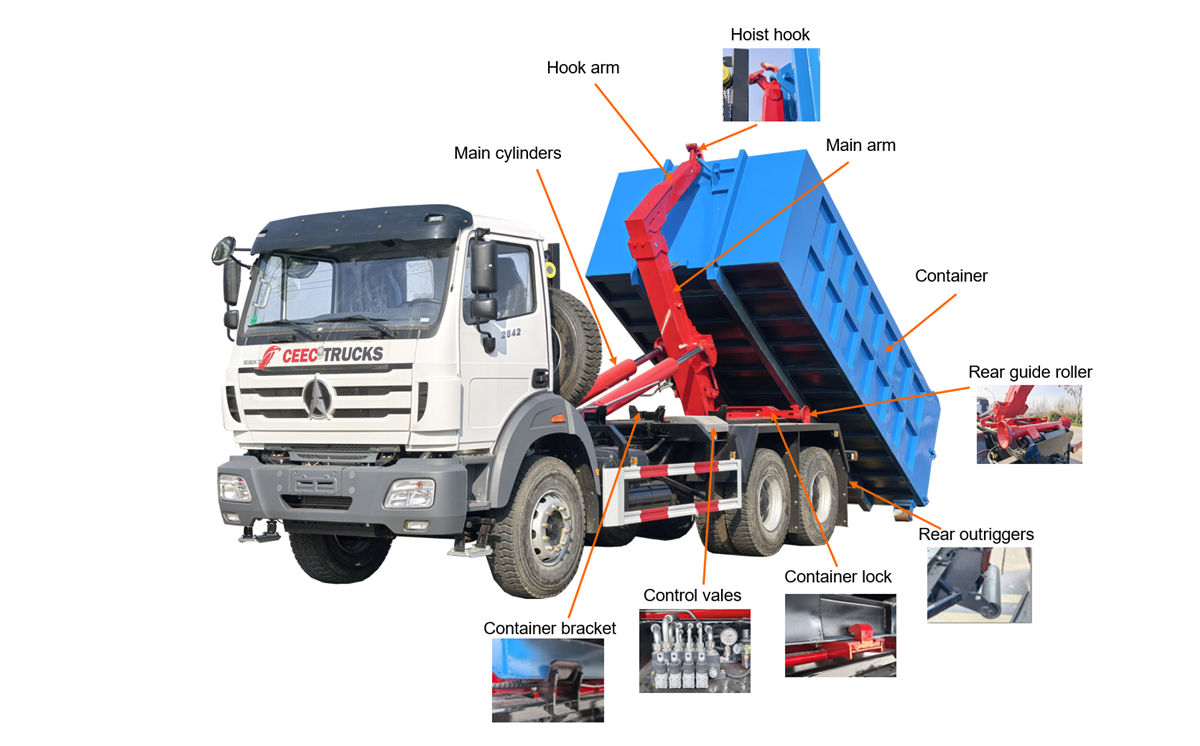

» Ⅳ. Beiben Hook Loader Structure:

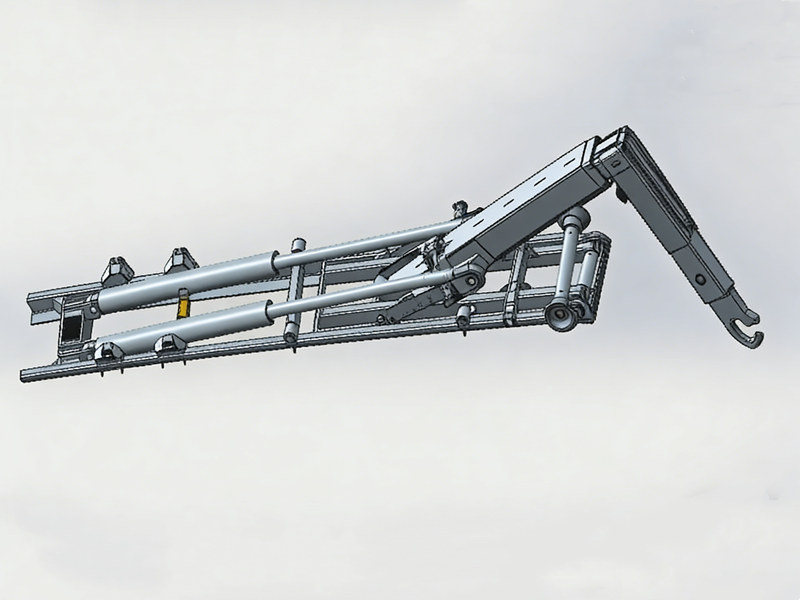

» Ⅴ. Hook Loader Specifications:
|
Lifting Capacity |
T |
20-25 |
|
H-Hook Center Height |
mm |
1570 |
|
L-Width of container guide rail |
mm |
1060 |
|
T-Clearance Height of Container guide rail |
mm |
≥ 150 |
|
LR-Length of Container |
mm |
4700~6400 |
|
Dumping Angle |
° |
50 |
|
Container Lifting Time |
S |
55 |
|
Container Lock Type |
External locking |
|
|
Container Tie Rod Diameter |
mm |
50 |
|
Tie Rod Offset |
mm |
270 |
|
Hydraulic Pump Flow |
ml/r |
80 |
|
Hydraulic System Pressure |
Mpa |
30 |
|

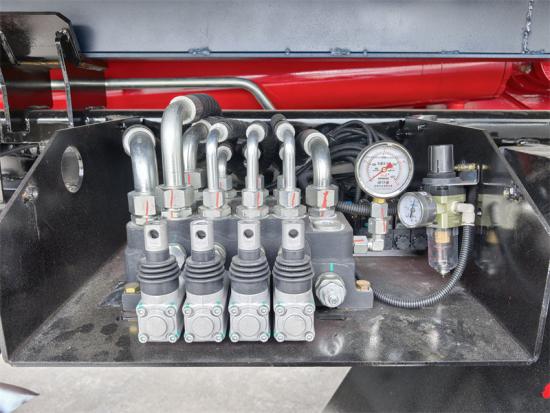

Multi-Way Valve |
Imported from Italy |

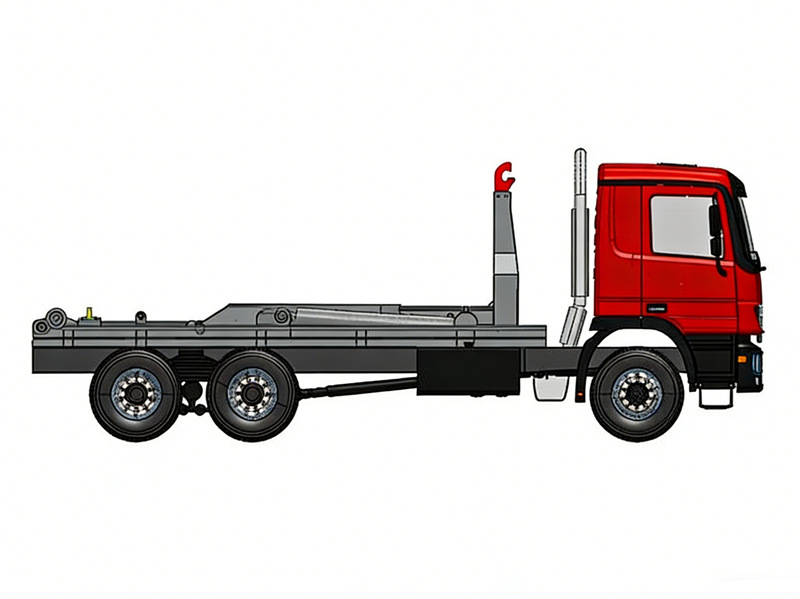

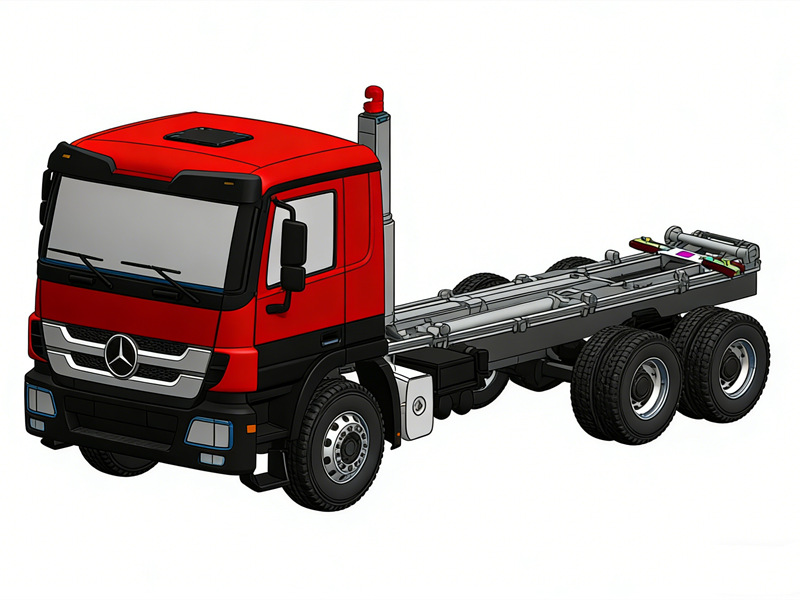

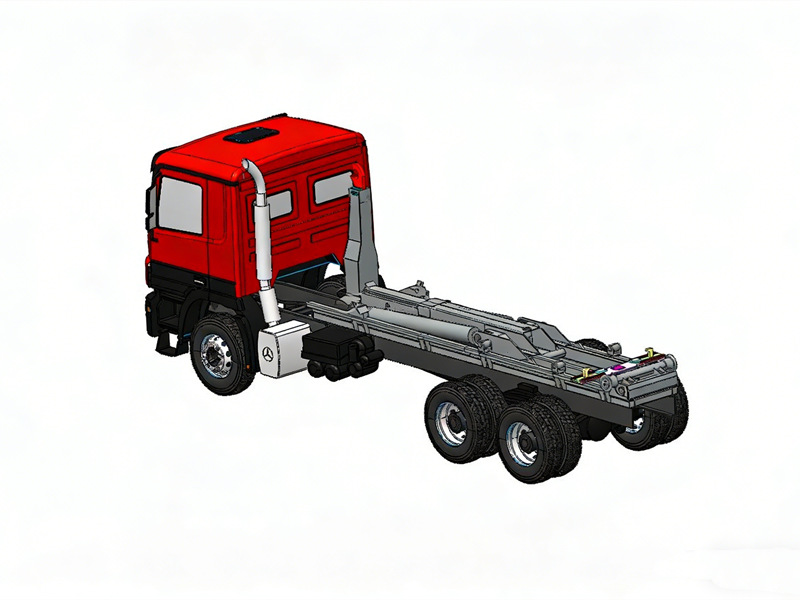

» Ⅶ. Product Drawing:
|
|

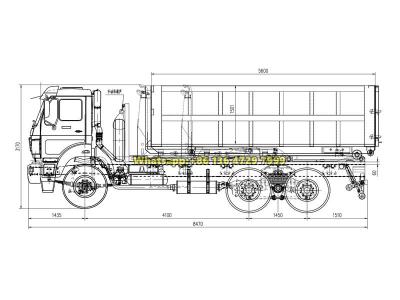

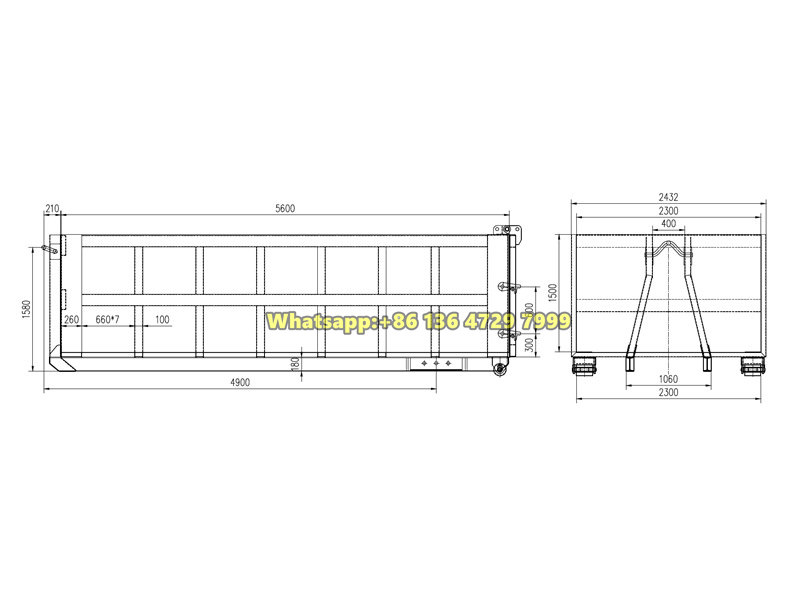

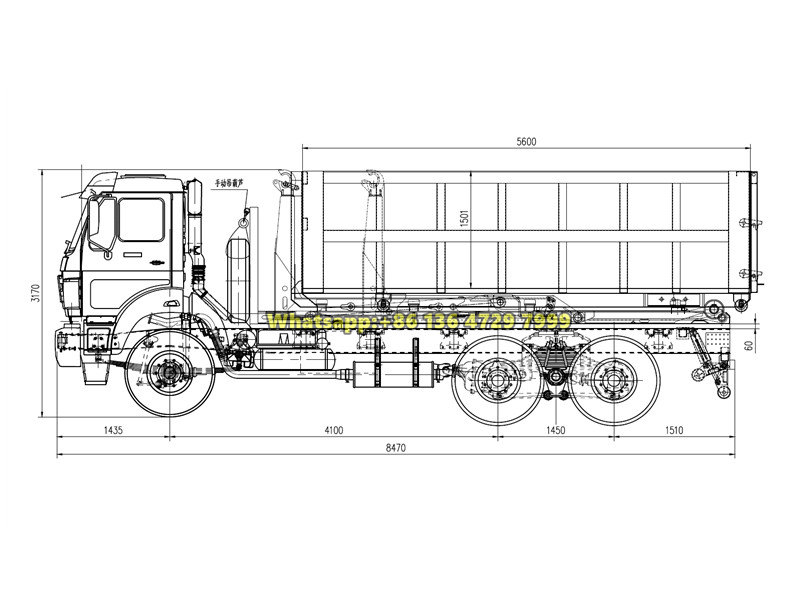

| Vehicle drawing | Container drawing |

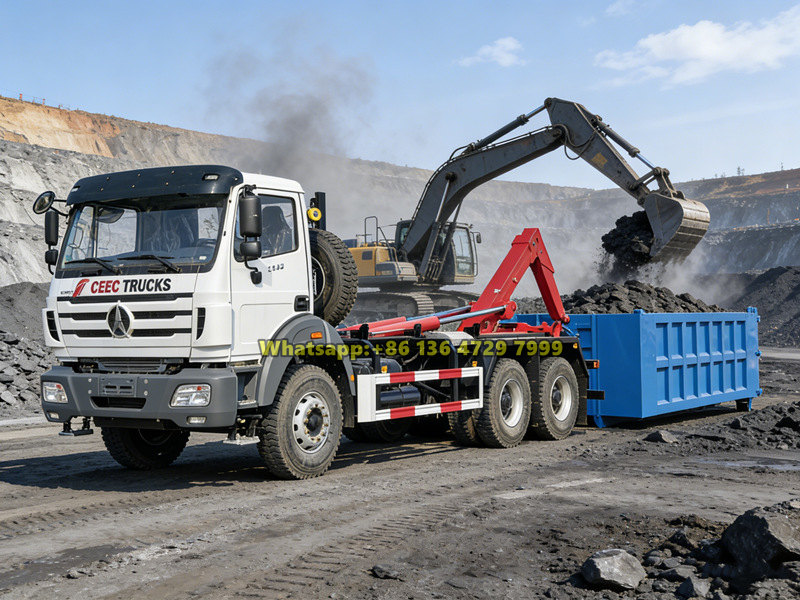

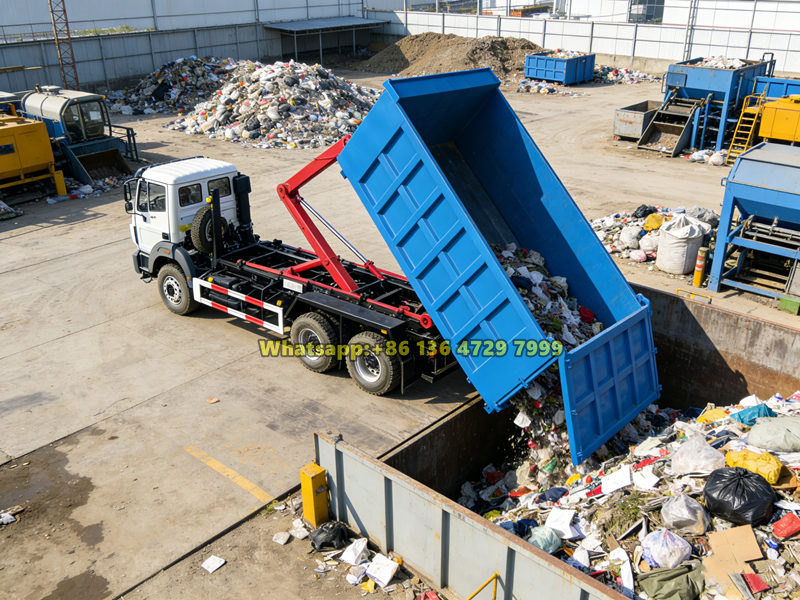

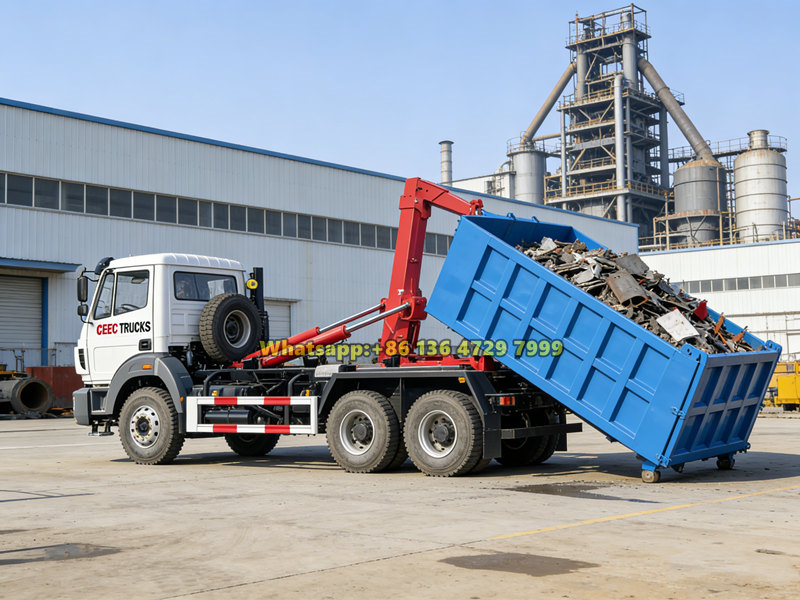

» Ⅷ. Product Applications:
Products --100% china beiben factory trucks!
Shipping --100% fast, Convenience, Efficient!
1.Beiben 4x2, 4x4, 6x4, 6x6, 8x4, 8x8 drive hooklift garbage trucks for option
2. Factory direct sale, supply Beiben 15 Ton, 20 Ton, 25 Ton, 30 T capacity hook loader trucks
3.12 months after sale service guarantee, quality assurance.
4. Beiben trucks mounted VOLER, HYVA, PALFINGER hook loader brand.
