Chasis de camión volquete con tracción 6×6 Beiben de Tanzania

Oct 30 , 2025

El camión volquete Beiben 6x6 es un vehículo de servicio pesado diseñado para proyectos de construcción, minería e infraestructura. Su sistema de tracción total 6x6 le permite trabajar en terrenos difíciles, como lodo, terrenos todo terreno, desierto, invierno y caminos forestales. Beiben 6x6 dump truck is commonly used in military logistics, it can carry heavy loads and large payload capacity.

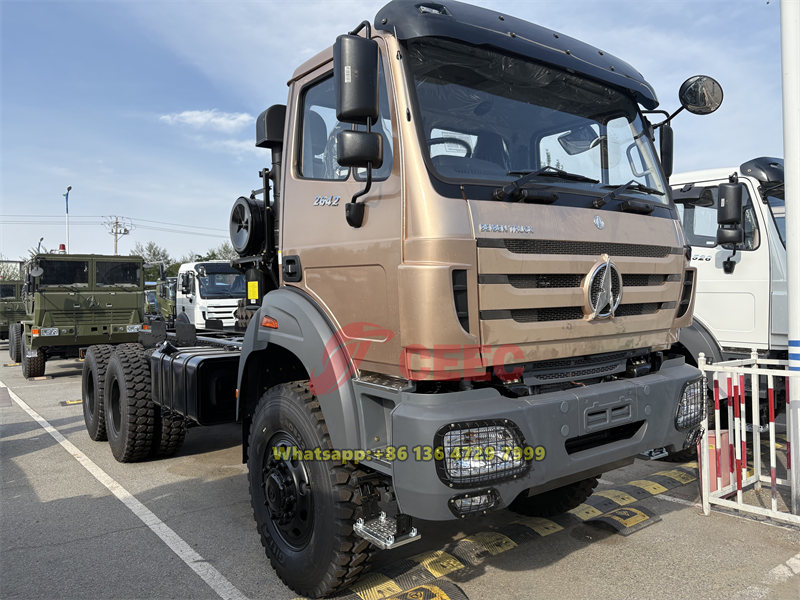

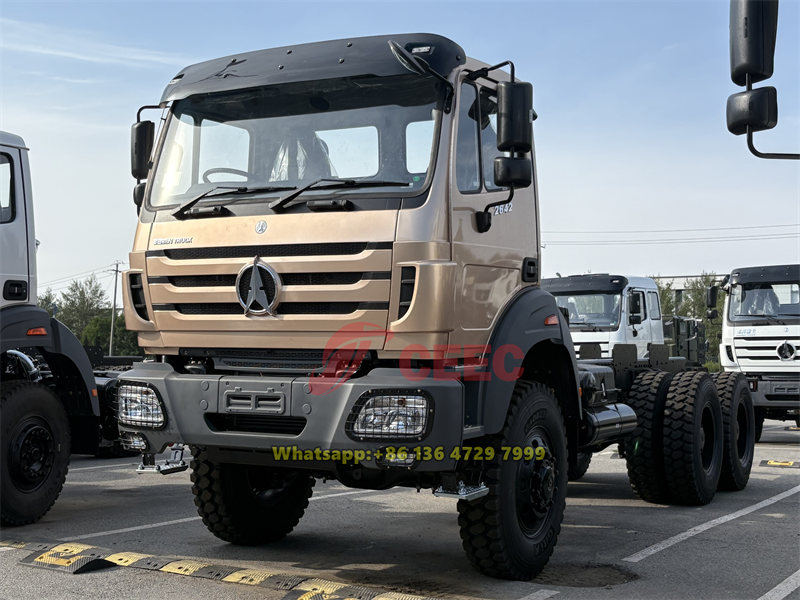

beiben 6x6 dump truck

Central to this system is the transfer case , a critical component that distributes power from the engine to both the front and rear axles. During all-drive operation, the transfer case receives torque from the transmission and splits it between the front and rear driveshafts, ensuring all six wheels are powered equally for maximum traction. The transfer case typically includes both high and low gear ranges.

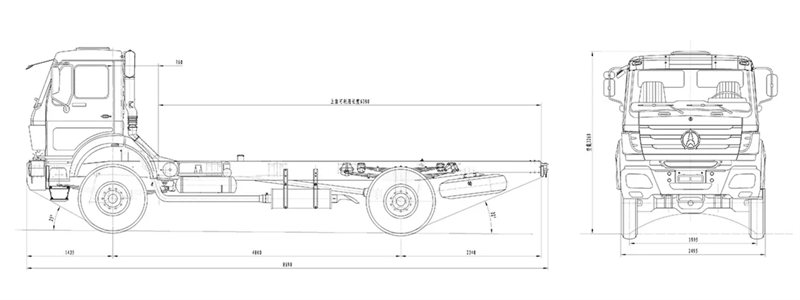

beiben 6x6 truck drawing

The high range is used for normal driving, while the low range provides extra torque and control for difficult terrain or when carrying heavy loads. Some transfer cases also feature a differential lock, which can be engaged to eliminate slip between the front and rear axles, improving performance in mud, snow, or on steep inclines.

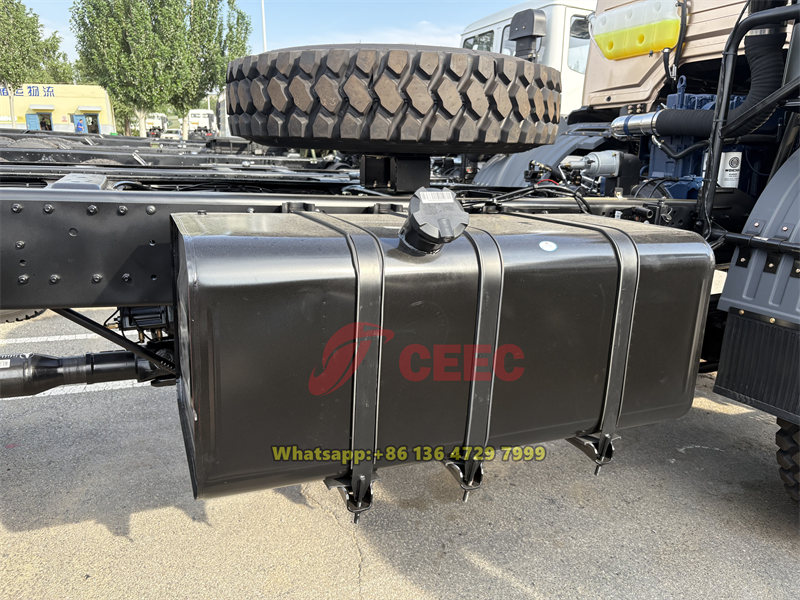

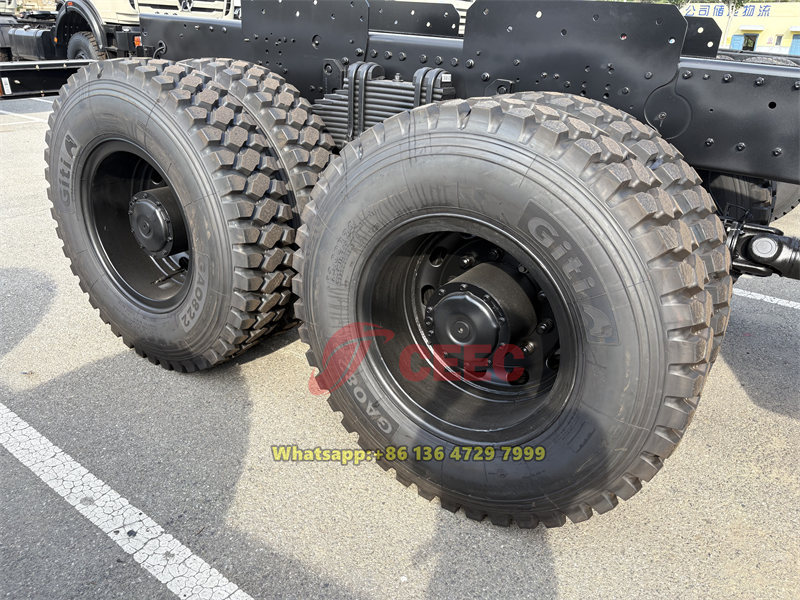

beiben off road dump truck

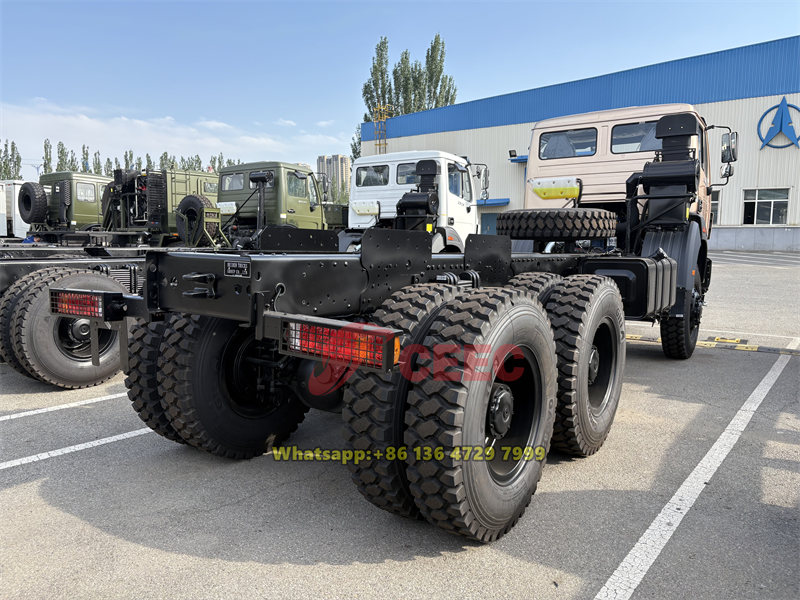

Beiben 2642 dump truck
General	Vehicle Brand	CEEC TRUCKS
	Chassis Brand	Beiben
	Overall Dimension	850025003430 mm
	GVW / Kerb Weight	40,000 kg / 12,500 kg

Cab	Cab Capacity	3 persons allowed
Cab	Air Conditioner	Heating/cooling air conditioner
Engine	Fuel Type	Diesel

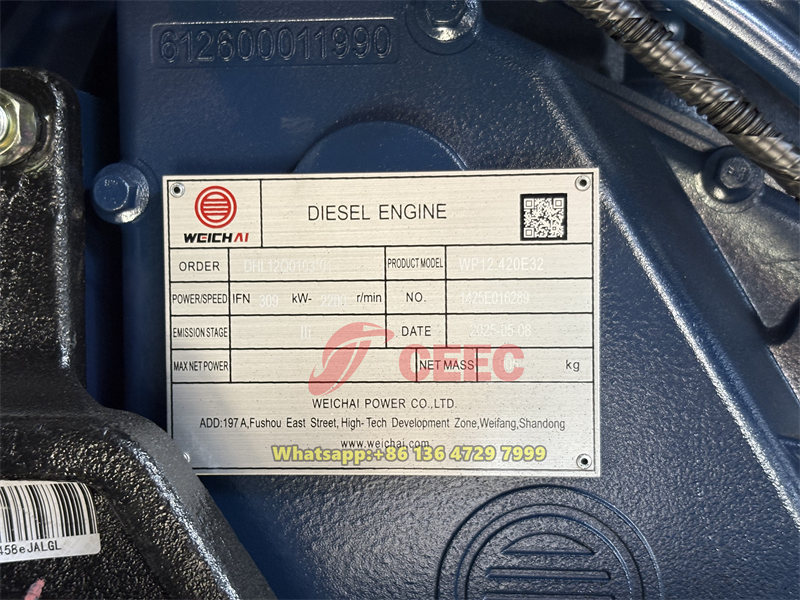

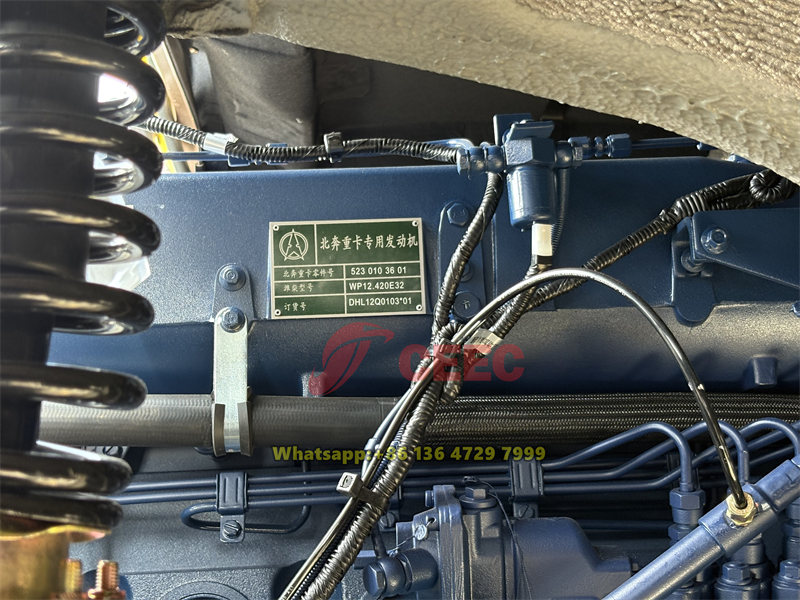

	Engine Brand	WEICHAI, WD10.380
	Power	420 HP (308 KW)
	Displacement	11926 ml
	Emission Standard	Euro 3

Chassis	Drive Type	6X6
	Transmission	FAST 9 speed levers with 1 reverse
	Wheelbase/No. of axle	4100+1450 mm / 3
	Tire Specification	12.00R24
	Tire Number	10 tires and 1 spare tire
	Max Speed	90 km/h
	Paint	Automatic Metallic paint

Super structure	Cargo box	5600x2300x1500
	shape	Common heavy duty
	Material	Carbon steel, Q345B
	Side thickness	4 mm
	Bottom thicknes	6 mm
Optional	NOTE: a) All standard accessories : In-cab controls, ladder, anti-static belt, fire extinguisher, inlet valve, discharge valve, Hose & Hose box, Backup alarm, LED lights, reflectors and mud flaps, water level gauge, pressure gauge b) Tank material: Available in carbon steel, stainless steel and aluminum,
